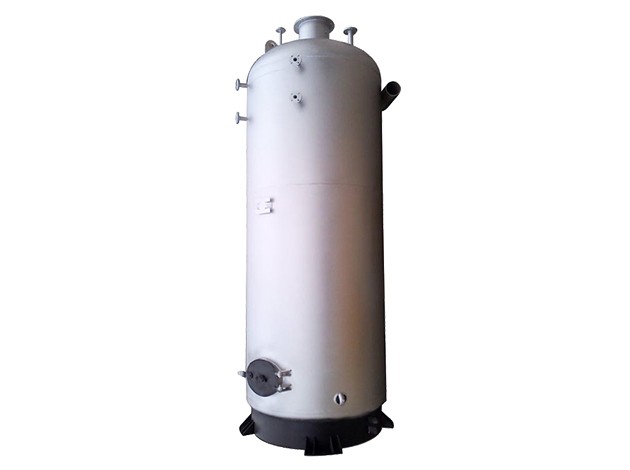

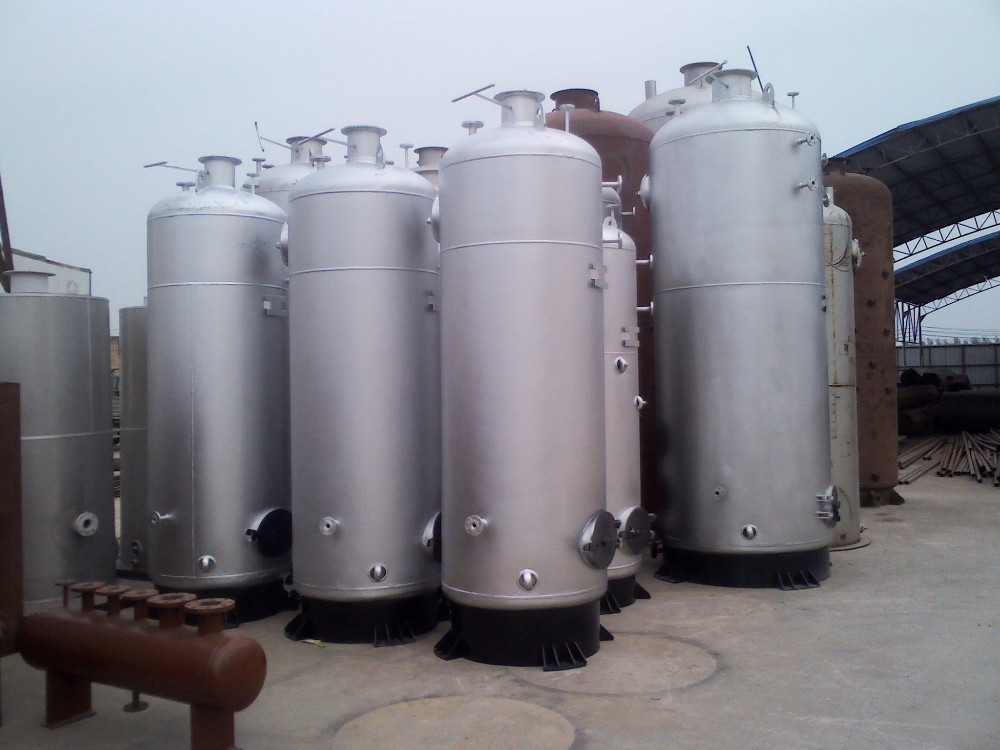

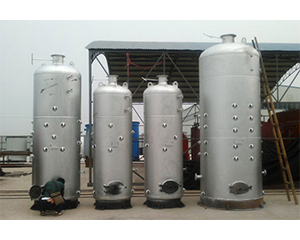

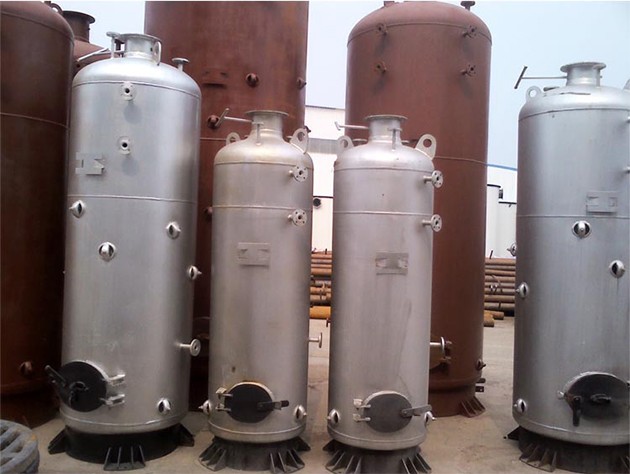

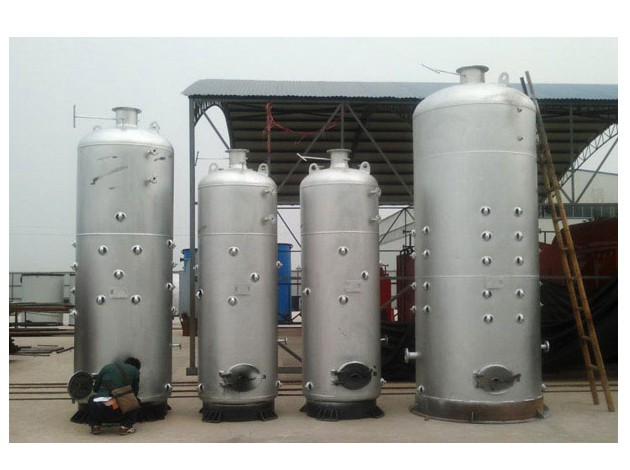

LSH series vertical type biomass steam boiler is a small capacity boiler with horizontal water tubes. This vertical type biomass boiler adopts the general combustion techniques, the combustion equipment is moving grate, coal or biomass fuel was fed by workers manually. After burning in the moving grate, the exhaust gas passes through the horizontal water tubes, and the small carbon black and dust fall down onto the grate for reburning, and then the exhaust gas is released to the atmosphere through the chimney.
Fuel: wood chips, straw, rice hull, bagasse, and other biomass fuels
Applications Business: Textile industry, food industry, wood factory, paper plant, chemical industry, garment industry, ect.

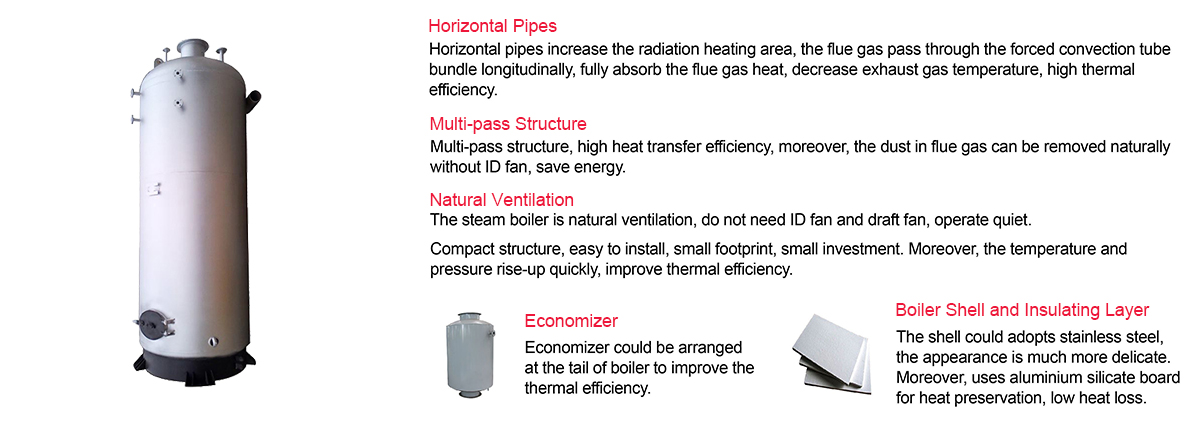

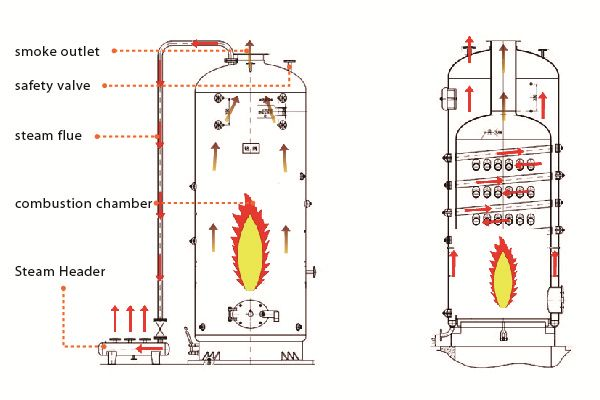

1. Large Heating Area
1) Horizontal pipes increase the radiation heating area, the flue gas pass through the forced convection tube bundle longitudinally, fully absorb the flue gas heat, decrease exhaust gas temperature, high thermal efficiency.
2) Low fuel consumption, compare with the older boiler, save 25%~30% energy.
2. Multi-pass structure
high heat transfer efficiency, moreover, the dust in flue gas can be removed naturally without ID fan, save energy.
3. Insulating Layer
The boiler uses aluminium silicate board for heat preservation, low heat loss. Moreover, the shell could adopts stainless steel, the appearance is much more delicate.
4. Natural ventilation
The steam boiler is natural ventilation, do not need ID fan and draft fan, operate quiet.
5. Economizer
Economizer could be arranged at the tail of boiler to improve the thermal efficiency.
6. Compact Structure
The boiler is vertical type with small steam capacity, small footprint, easy to install, low investment. Moreover, the temperature and pressure rise-up quickly.
Model | Rated Evaporation（t/h） | Working Pressure (Mpa) | Steam Temperature (°C) | Heating Transfer Area (m2) | Grate Area (m2) | Overall Size (m) |
LSH0.3-0.4 | 0.3 | 0.4 | 151 | 9 | 0.5 | 1.0×3.4 |
LSH0.5-0.4 | 0.5 | 0.4 | 151 | 18.3 | 0.78 | 1.2×3.7 |
LSH1-0.4 | 1 | 0.4 | 151 | 38.6 | 1.54 | 1.6×4.8 |
LSH0.3-0.7 | 0.3 | 0.7 | 170 | 10.6 | 0.5 | 1.0×3.6 |
LSH0.5-0.7 | 0.5 | 0.7 | 170 | 20.5 | 0.78 | 1.2×4.0 |
LSH1-0.7 | 1 | 0.7 | 170 | 46.3 | 1.54 | 1.6×4.9 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||
