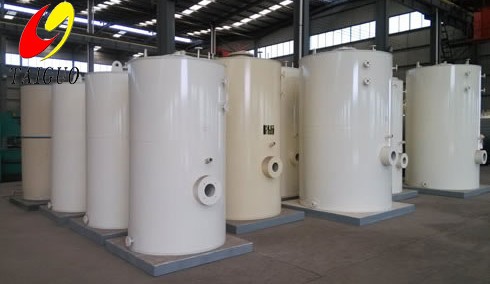

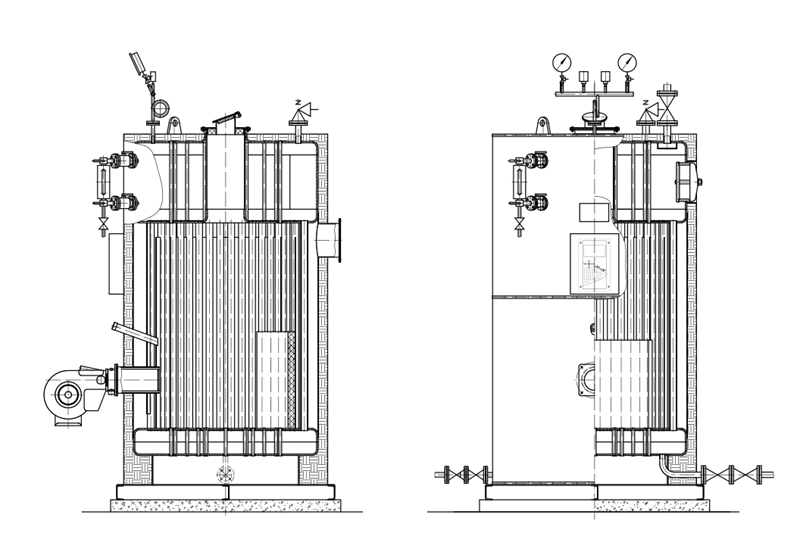

The vertical water tube steam boiler is once-through three-pass structure boiler,temperature rises up quickly, and thermal efficiency is high. The flame has two stage, convenient for adjustment. It is the patent product of Taiguo Boiler, the patent number is ZL 2018 2 1708984.9. The small steam boiler is an exquisite small steam capacity (0.1-1tph) heating equipment.
Available Fuel: Heavy oil, diesel, natural gas, LPG, etc.
Applications Business: Widely used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc.
Features:
♣ Advanced structure: Equipped with water tube structure, small volume and capacity, high safety, easy operation and easy for maintenance.
♣ High efficiency: Fast start, steam can be get in 15minutes, energy saving, thermal efficiency can reach >92%
♣ Unique fins: Shaped designed to facilitate absorption of heat. Besides, the discharge of smoke meets the national standard.
♣ Safety operation: Equipped with multiple safety control system of pressure, temperature and water level.
♣ High quality steam: The dryness of high quality steam is above 96%
♣ Europe brand burner: Adopt Italy brand Balture to make combustion fully. Auto fire detection, which can stop working and warn when fire distinguishes.
Model | Rated evaporation capacity (t/h) | Working pressure (Mpa) | Heating Area (m2) | Thermal efficiency (％) |
LSS0.1-0.4-Y(Q) | 0.1 | 0.4 | 3 | 89 |
LSS0.2-0.4-Y(Q) | 0.2 | 0.4 | 3 | 89.2 |
LSS0.3-0.4/0.7-Y(Q) | 0.3 | 0.4/0.7 | 3 | 89.5 |
LSS0.5-0.4/0.7-Y(Q) | 0.5 | 0.4/0.7 | 3 | 89.6 |
LSS0.7-0.4/0.7-Y(Q) | 0.7 | 0.4/0.7 | 3 | 91 |
LSS1-0.4/0.7-Y(Q) | 1 | 0.4/0.7 | 3 | 91 |
