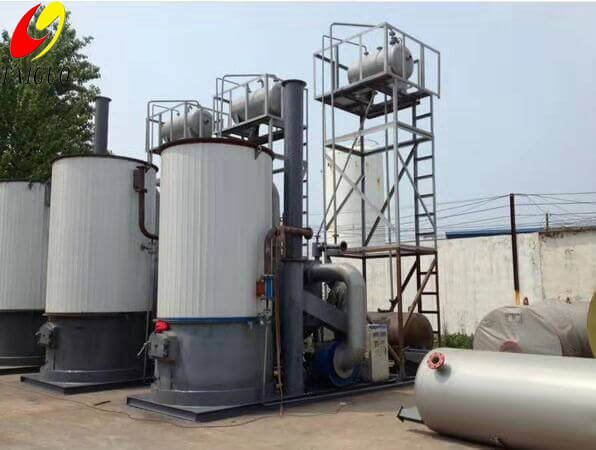

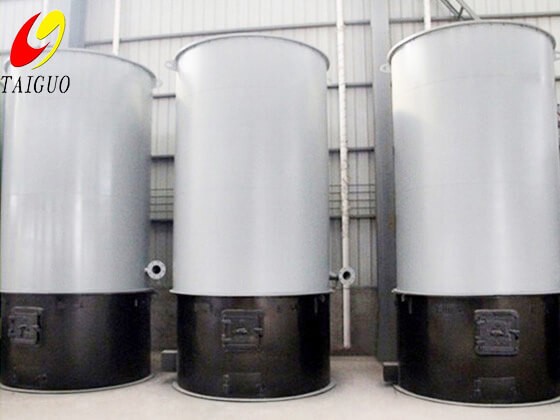

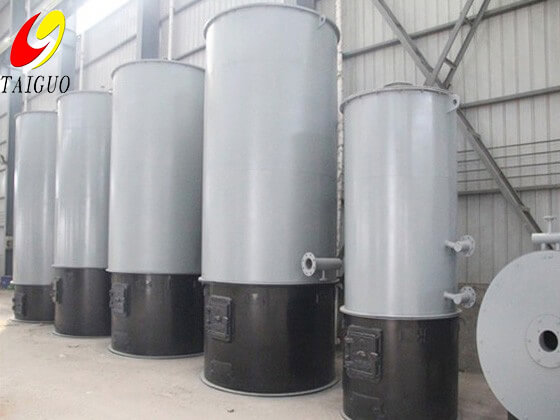

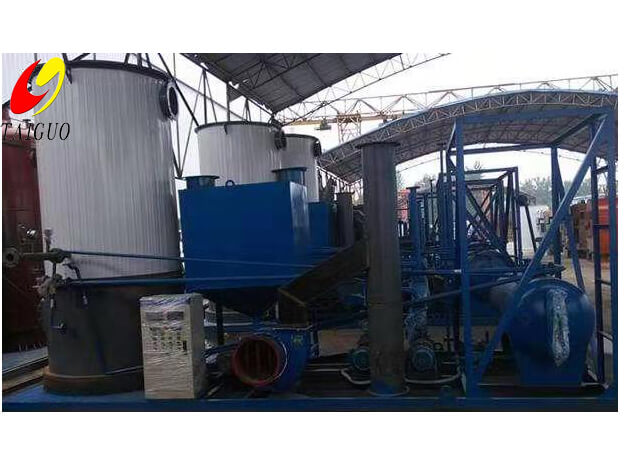

YGL Vertical Coal/Biomass Thermal Oil Heater

YGL series vertical type thermal oil heater is an safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (350℃). It is vertical type boiler, the combustion equipment is moving grate, could feed manually or mechanically. The heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. TaiGuo Boiler has a mature R&D and design team, could customize the boilers based on customers’ requirement.

Fuel: coal and biomass fuels, includes wood, bagasse, straw, peanut shell, rice husk,solid fuel, waste fabric, Jute, ect.

Application Business: Textile, Food, Chemical, Plastics, Rubber, Paper, Plywood, Building materials, Synthetic fiber, etc.





1. It's a adaptable to a wide range of fuels including bituminous coal, lean coal and anthracite
2. Thermal efficiency 5%-15% higher than other boilers, annual cost savings for 10tph boiler as high as USD70000
3. Saving money and time: custom designed and feeding system, slag discharge system, flue gas treatment system
4. Easy feeding and discharge, high level of automation that requires less operational and maintenance personnel
5. Safety assured by the advanced interlock control system

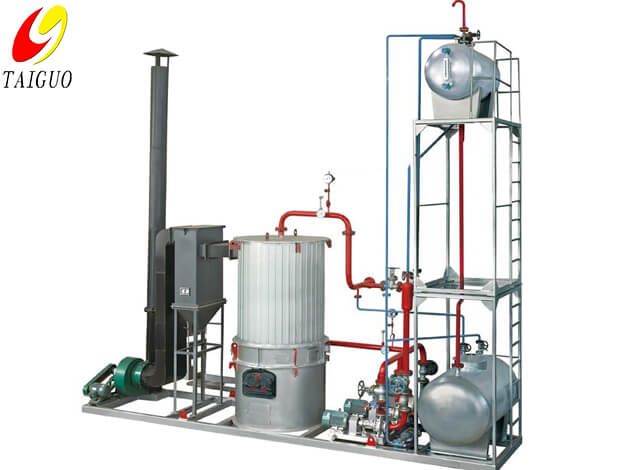

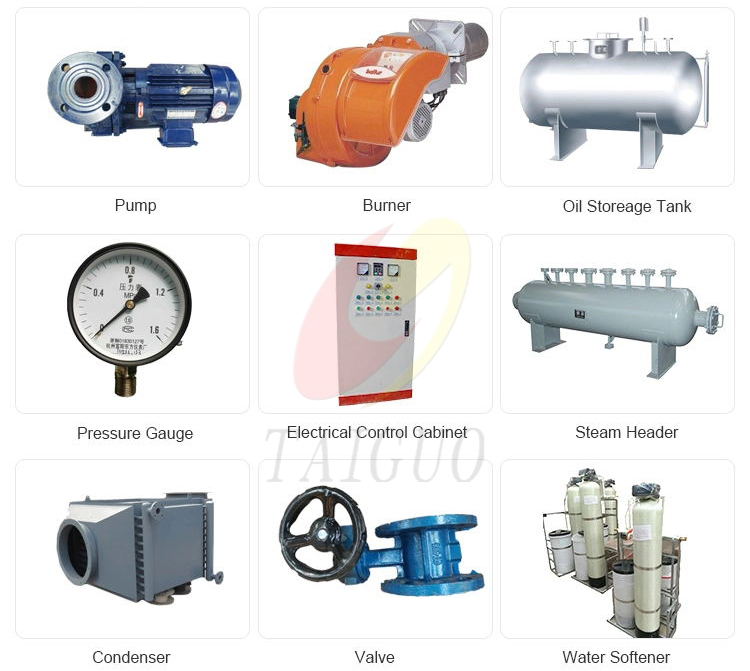

Boiler System


Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the thermal oil heater could be widely used in a variety of industrial production.

1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.

2) Food industry - cooking, drying, vegetable oil refining.

3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.

4) Plastics industry - plastics fired, extruded shape.

5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.

6) Paper industry - drying, corrugated paper processing, calender, glue roller.

7) Wood industry - hot processing, heat setting.

8) Machinery industry - drying, assembly processing

9)Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.

10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry

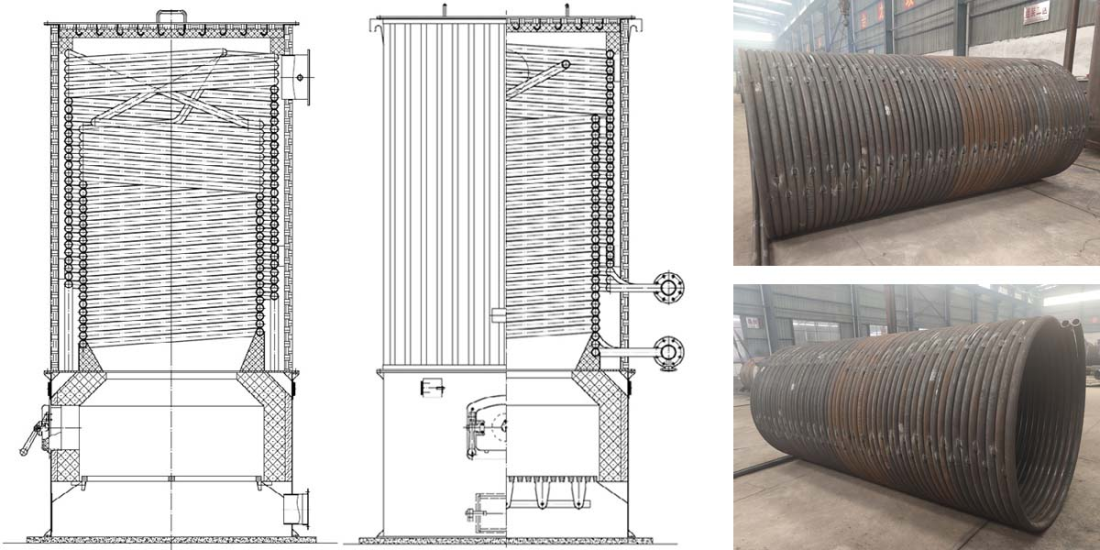

YGL Vertical Coal/Biomass Thermal Oil Heater(图1)

Rated powerkw120350700100012001400
Rated pressureMpa1.1
Working pressureMpa0.8
Working temp<350

Gas oil fired thermal oil boiler shipped to Egypt
Gas oil fired thermal oil boiler shipped to Egypt
ModelGas oil fired thermal oil boiler
ApplicationTowel Factory
5000000kcal Gas Fired Thermal Oil Boiler in Saudi Arabia
5000000kcal Gas Fired Thermal Oil Boiler in Saudi Arabia
ModelYY(Q)W gas fired thermal oil boiler
Applicationasphalt heating
Thermal Oil Heater for Vietnam Glass Plant
Thermal Oil Heater for Vietnam Glass Plant
ModelThermal Oil Heater
ApplicationGlass factory
