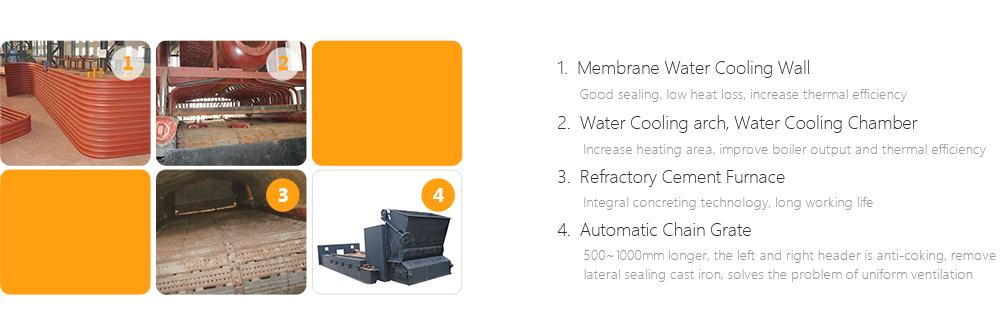

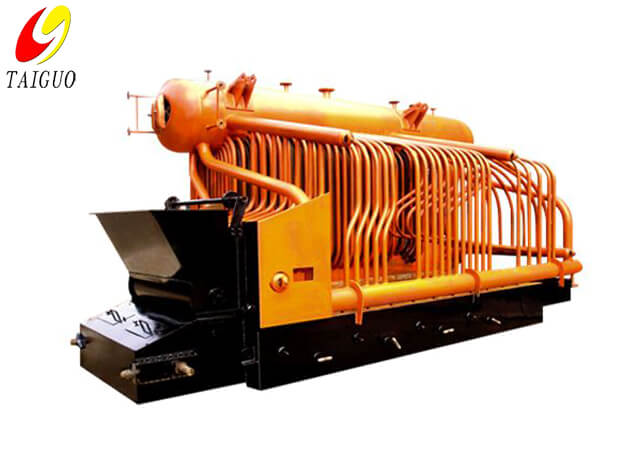

SZL series double drums coal fired boiler is horizontal type large capacity water tube boiler with high steam quality. new type SZL boiler adopts membrane water cooling wall, low thermal inertia design, and water cooling combustion chamber. Boiler with steam capacity lower than 4t/h is fast assembly water tube structure, the boiler with steam capacity between 6~25t/h is consisted of upper part (boiler heating part) and lower part (combustion equipment). This series boiler has reached the international advanced level on technology and performance, has the advantages of compact structure, convenient installation, short install period, low cost, and environmental protect.
Fuel: Lignite, Bituminous Coal, Lean Coal, Anthracite, Wood, Briquette, Waste Fabric, Jhute, Solid Fuel.
Applications:Foods, Garment, Textile, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Plywood, Building material, Chemical, etc.

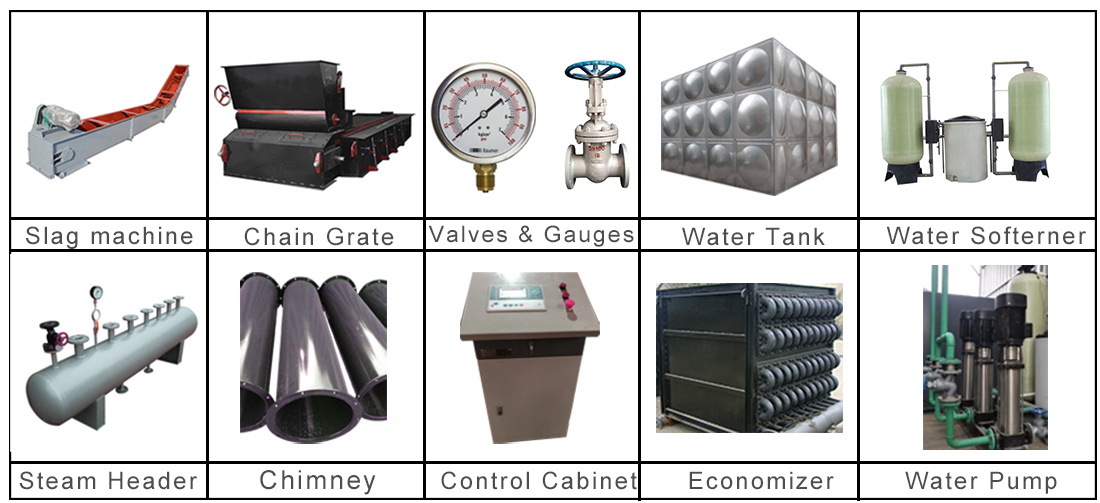

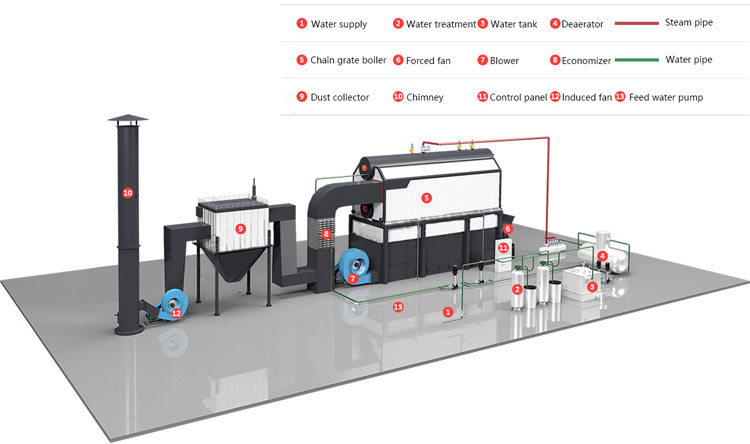

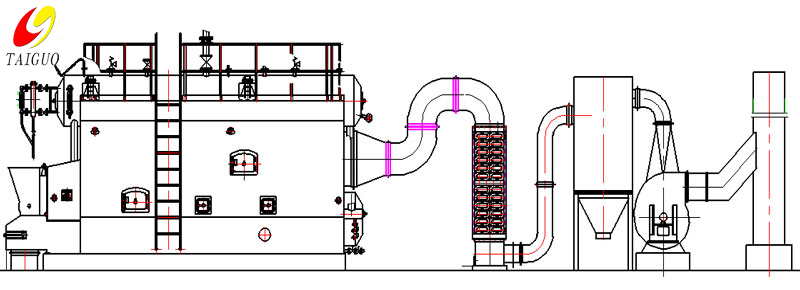

Whole SZL Series coal fired boiler system includes grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.
SZL Series Coal Fired Steam Boiler:
Model | Rated Steam Capacity (t/h) | Working Pressure (MPa) | Thermal Efficiency (%) | Overall Dimension L×W×H (m) | Weight (t) |
SZL2-1.25/1.6/2.5 | 2 | 1.25/1.6/2.5 | 81 | 5.8×2.35×3.5 | 25 |
SZL4-1.25/1.6/2.5 | 4 | 1.25/1.6/2.5 | 81 | 7.8×2.4×3.6 | 32 |
SZL6-1.25/1.6/2.5 | 6 | 1.25/1.6/2.5 | 81 | 8×3×4.87 | 43 |
SZL8-1.25/1.6/2.5 | 8 | 1.25/1.6/2.5 | 81 | 8.1×3.2×5.7 | 63 |
SZL10-1.25/1.6/2.5 | 10 | 1.25/1.6/2.5 | 81 | 8.2×3.5×5.7 | 87 |
SZL12-1.25/1.6/2.5 | 12 | 1.25/1.6/2.5 | 81 | 10.6×3.6×5.7 | 100 |
SZL15-1.25/1.6/2.5 | 15 | 1.25/1.6/2.5 | 82 | 12.5×3.7×5.8 | 105 |
SZL20-1.25/1.6/2.5 | 20 | 1.25/1.6/2.5 | 82 | 13.8×4.2×5.8 | 140 |
SZL25-1.25/1.6/2.5 | 25 | 1.25/1.6/2.5 | 82 | 15.6×5×6.135 | 170 |
SZL30-1.25/1.6/2.5 | 30 | 1.25/1.6/2.5 | 82 | 17.7×8.5×9.5 | 210 |
Note:1.Parameter is for reference only, if any changes should follow the factory technical data. | |||||
SZL Series Coal Fired Hot Water boiler:
Model | Rated Power (MW) | Working pressure (Mpa) | Supply water temperature (℃) | Return water temperature (℃） | Thermal efficiency (%） |
SZL1.4-0.7/95/70 | 1.4 | 0.7 | 95 | 70 | 80 |
SZL2.8-0.7/95/70 | 2.8 | 0.7 | 95 | 70 | 80 |
SZL4.2-1.0/95/70 | 4.2 | 1 | 95 | 70 | 80 |
SZL5.6-1.0/95/70 | 5.6 | 1 | 95 | 70 | 80 |
SZL7-1.0/95/70 | 7 | 1 | 95 | 70 | 80 |
SZL10.5-1.0/115/70 | 10.5 | 1 | 115 | 70 | 80 |
SZL14-1.0/115/70 | 14 | 1 | 115 | 70 | 80 |
Note: 1.Parameter is for reference only, if any changes should follow the factory technical data. | |||||
