Horizontal Biomass Coal Fired Thermal Oil Heater
Introduction

YLW series coal/biomass thermal oil boiler is also called thermal fluid heater, which is square oil horizontal structure, chain grate automatic fuel feeding, coal burning in furnace, realize high-temp oil output for industrial production use. YLW hot oil boiler is a kind of boiler which uses solid fuel, thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace. It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

Fuels: Coal,solid fuel,anthracite,bitumite,lignite; wood chip, bagasse, straw, and other bagasse fuel

Application Business: Textile printing and dyeing, plastic and rubber, paper industry, wood industry, building material, food industry, etc

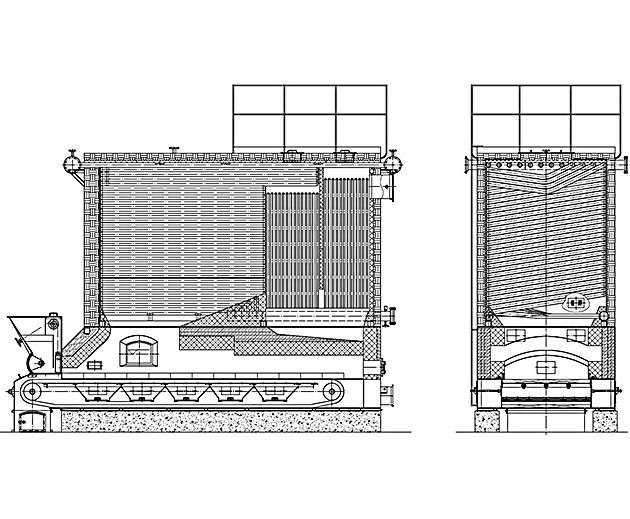

Structure

biomass coal thermal oil boiler structure

Features and advantages:

1. Automatic Chain Grate

Resist high temperature, low coal leakage, save labor.

2. Large Diameter Combustion Chamber

Composed with large diameter square coil, high combustion efficiency.

3. Excellent Coil Design

Square coil tube and serpentine coil have good thermal expansion performance, low stress, safe and reliable

4. Horizontal Three Pass Structure

Make full use of heat, high thermal efficiency

5. Perfect Automatic Control Measures

Precision control on outlet oil temperature, multiple protection system safe and reliable operation.

6. Strong Adaptability of Different Fuels

Separated design for combustion equipment and upper furnace according to the different nature of the solid fuel.

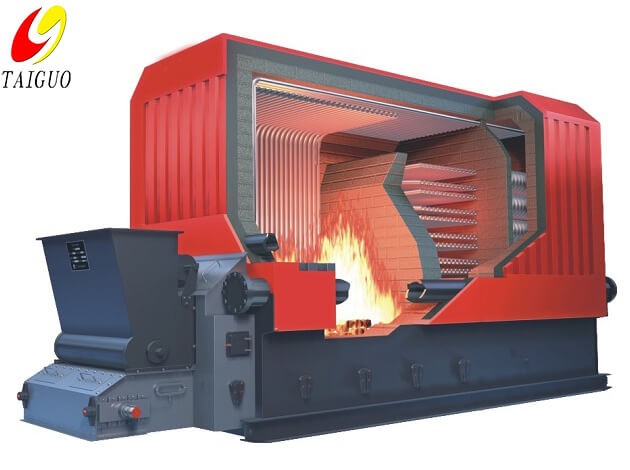

Boiler System

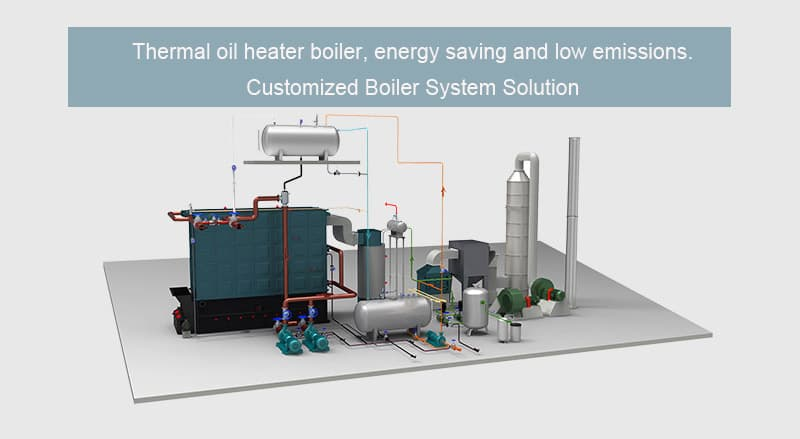

coal biomass fired hot oil boiler

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

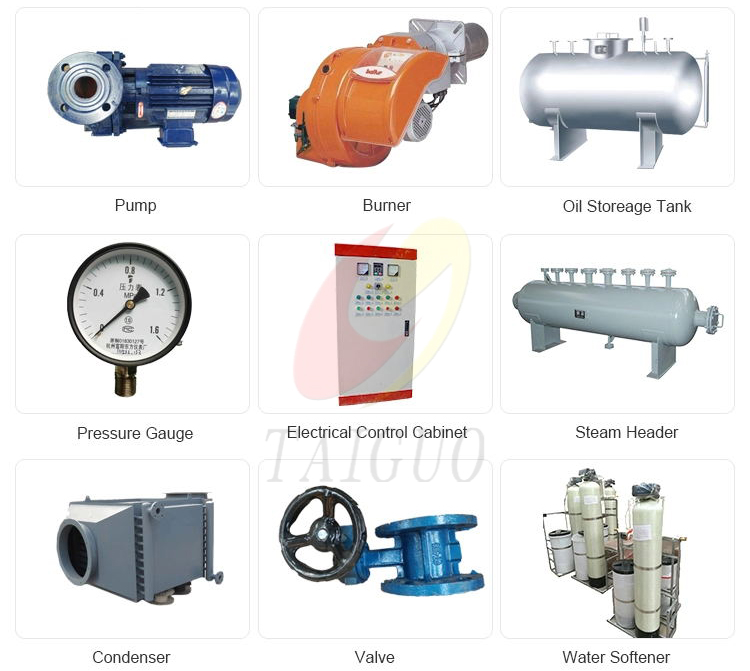

Auxiliary

YLW Coal/Biomass Fired Thermic Fluid Heater(图1)

Parameters
ModelYLW-1400MAYLW-3000MAYLW-4200MAYLW-6000MAYLW-10000MAYLW-12000MA
Rated powerKW14003000420060001000012000
Working pressureMPa0.8
Working temperature<350
Efficiency%757878788185
Dimensionmm4121*1900*29006000*2650*32406900*2820*34707900*3200*34759200*3300*355012600*3820*3630
Weightt1430404870142
                                            Note: Parameter is for reference only, if any changes should follow the factory technical data.



Case

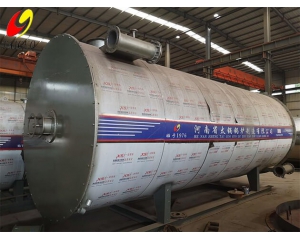

Gas oil fired thermal oil boiler shipped to Egypt
Gas oil fired thermal oil boiler shipped to Egypt
ModelGas oil fired thermal oil boiler
ApplicationTowel Factory
Capacity7MW
5000000kcal Gas Fired Thermal Oil Boiler in Saudi Arabia
5000000kcal Gas Fired Thermal Oil Boiler in Saudi Arabia
ModelYY(Q)W gas fired thermal oil boiler
Applicationasphalt heating
Capacity5000000kcal

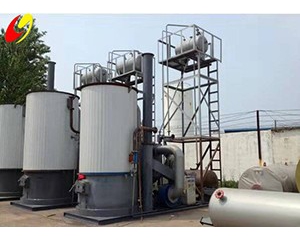

Thermal Oil Heater for Vietnam Glass Plant
Thermal Oil Heater for Vietnam Glass Plant
ModelThermal Oil Heater
ApplicationGlass factory
CapacityYLL-3500MA
Related Product
YY(Q)W Oil/Gas Fired Thermal Oil Boiler
Capacity:30-360 kcal/h
Pressure:0.6 MPa
more + Contact us
Horizontal Biomass Coal Fired Thermal Oil Heater
Capacity:1400-12000 kw
Pressure:0.8 MPa
more + Contact us

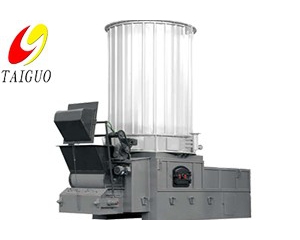

Vertical Chain Grate Hot Oil Boiler
