DZL series quick-load biomass fired steam boiler is also called automated chain grate boiler or travling grate biomass boiler, with horizontal structure, low pressure, single drum, fire and water tube structure. Fuel feeding method is automatic which saves a lot of labor.The fuels can be bagasse, sawdust, peanut shell, rice husk, wood chips, olive shell, paddy, cocoa shell, palm oil shell, sugarcane, low cost and energy saving – nearly 50% lower than gas/oil fired boiler.
Applications Business:Foods, Ricemill, Sugar, Plywood, Garment, Textile, Paper, Brewery, Poultry feed, Packaging, Plywood, Building material, Chemical, etc
Advantages & Features:

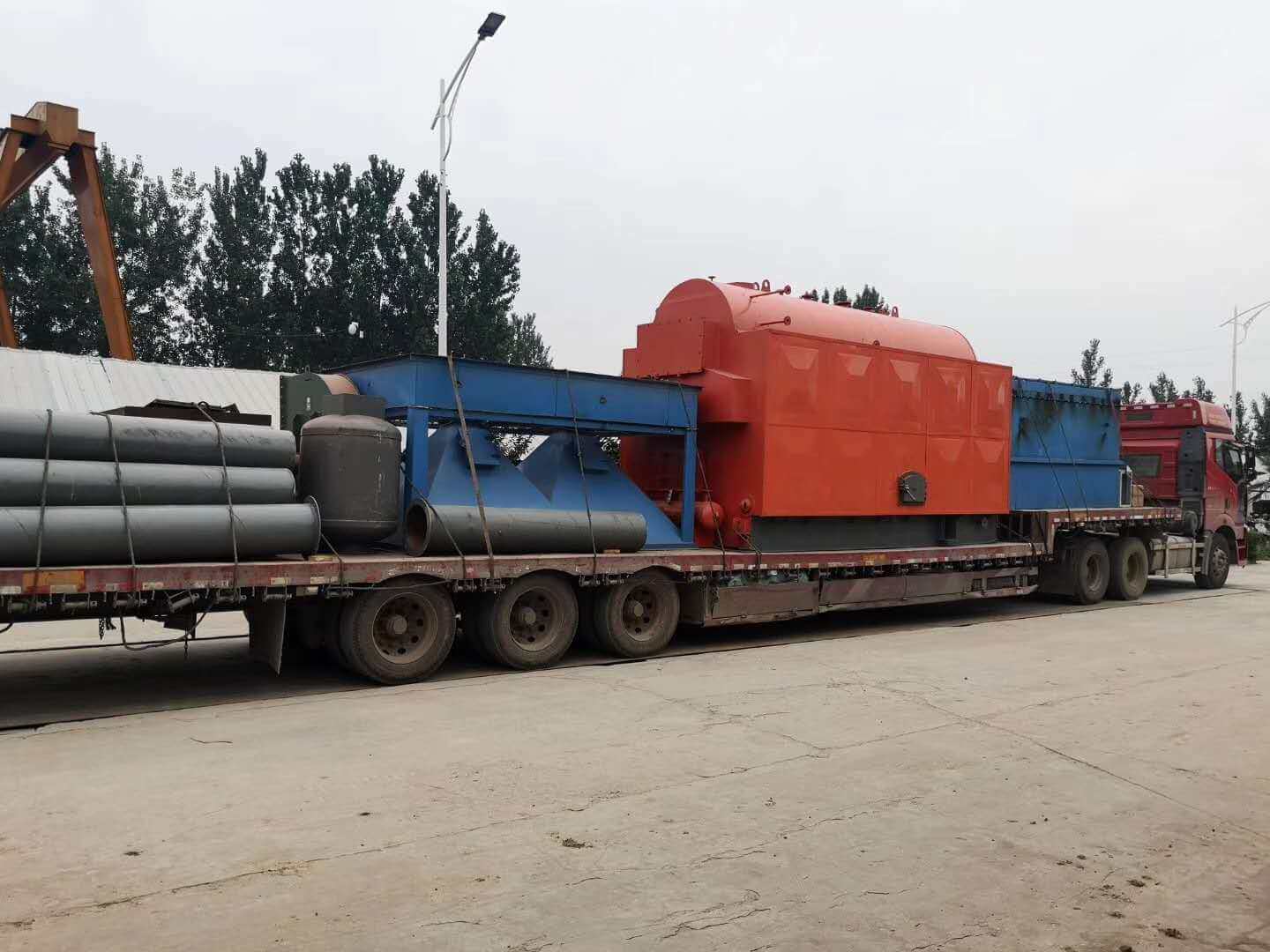

1. Easy Installation: Fast-assembly leave from factory, easy to transport and install at site;

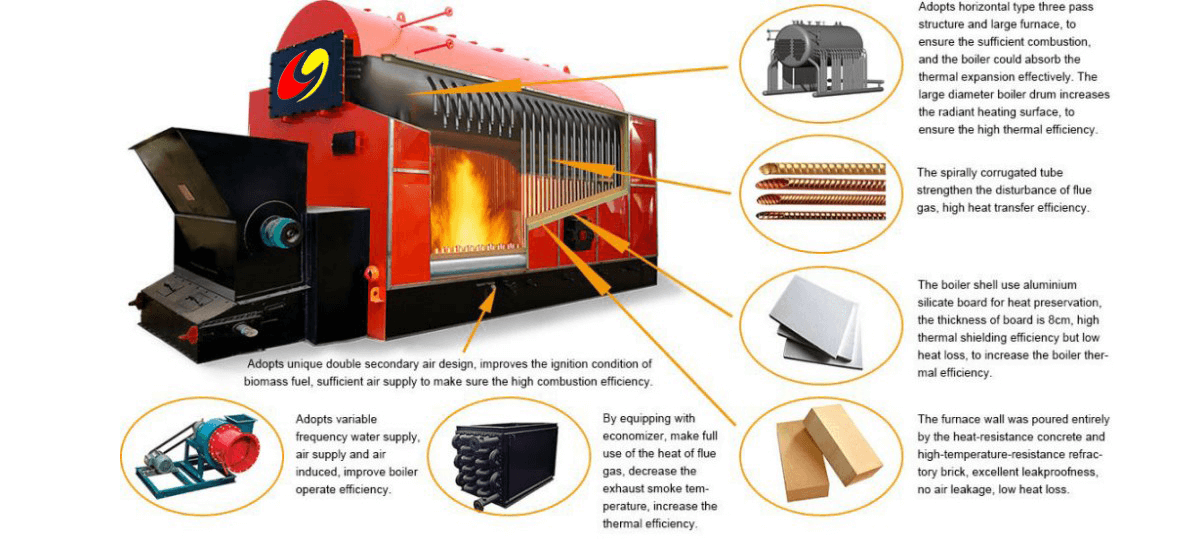

2. Full Combustion: Reasonable design of furnace structure, fuel fired fully;
3. High Efficiency Grate: Adopt scale chain grate, feed uniformly,easy operation and clean;
4. High Security: Equip with water lack protection and over pressure protection devices, security and reliable;
5. Long Life and Durable: Advanced production processes, strict quality inspection, boiler life span above 20 years;
6. Environmental Protection and Low Noise: Low noise fans, dust remove device, meet local emission requirements;
7. Can achieve the simulation speed combusion, won't explode.

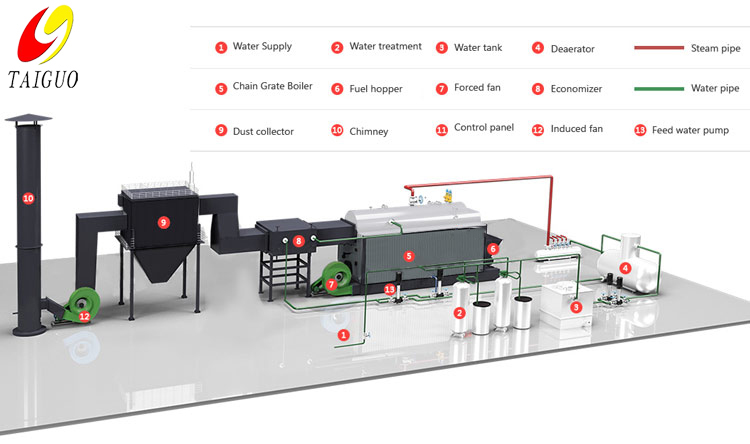

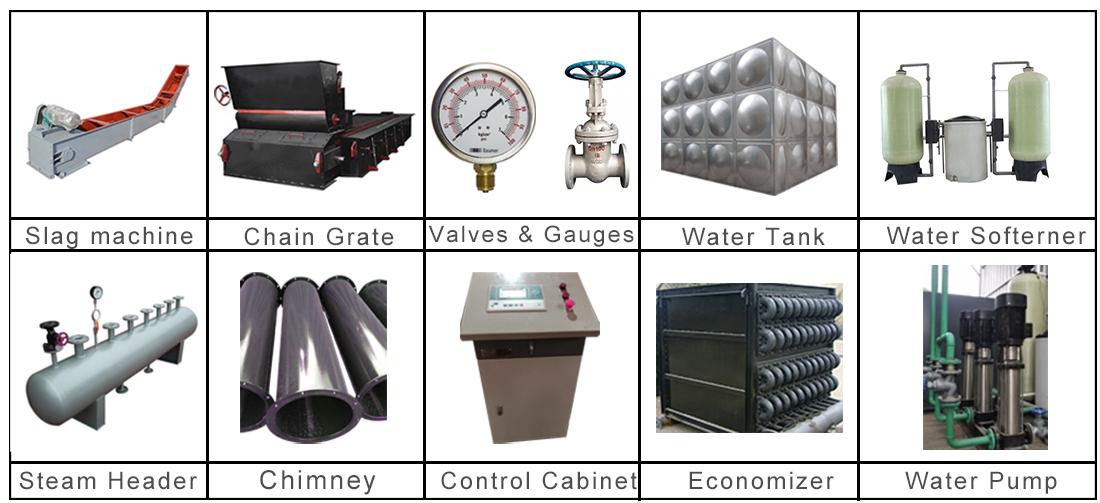

Whole biomass boiler system includes grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.
DZL Series Biomass Fired Steam Boiler:
Model | Rated evaporation capacity | Rated pressure | Thermal efficiency | Fuel consumption | Overall Dimension | Weight |
(t/h) | (MPa) | (%) | (kg/h) | L×W×H (mm) | (ton) | |
DZL1-0.7/1.0/1.25-T | 1 | 0.7/1.0/1.25 | 82 | 200 | 5100×2200×3000 | 17 |
DZL2-0.7/1.0/1.25-T | 2 | 0.7/1.0/1.25 | 82 | 400 | 5500×2300×3300 | 23 |
DZL4-1.25/1.6-T | 4 | 1.25/1.6 | 82 | 800 | 6600×2600×3600 | 25 |
DZL6-1.25/1.6-T | 6 | 1.25/1.6 | 82 | 1200 | 8200×2900×3800 | 40 |
DZL8-1.25/1.6-T | 8 | 1.25/1.6 | 82 | 1600 | 8100×3100×3800 | 53 |
DZL10-1.25/1.6-T | 10 | 1.25/1.6 | 82 | 2010 | Up 7700×3200×3600 | 72 |
Down 8600×3200×6735 | ||||||
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. | ||||||
DZL Series Biomass Fired Hot Water Boiler:
Model | Rated power | Rated pressure | Supply water Temperature | Return water temperature | Thermal Efficiency | Overall dimension | Weight |
(MW) | (Mpa) | (℃) | (℃) | (%) | L×W×H (m) | (t) | |
DZL0.7-0.7/95/70 | 0.7 | 0.7 | 95 | 70 | 82 | 5.1x2.2x3 | 17 |
DZL1.4-0.7/95/70 | 1.4 | 0.7 | 95 | 70 | 82 | 5.5x2.3x3.3 | 23 |
DZL2.8-1.0/95/70 | 2.8 | 1 | 95 | 70 | 82 | 6.6x2.6x3.6 | 25 |
DZL4.2-1.0/95/70 | 4.2 | 1 | 95 | 70 | 82 | 7.5x2.9x3.8 | 35 |
DZL5.6-1.25/95/70 | 5.6 | 1 | 95 | 70 | 82 | 8.1x3.1x3.8 | 45 |
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
