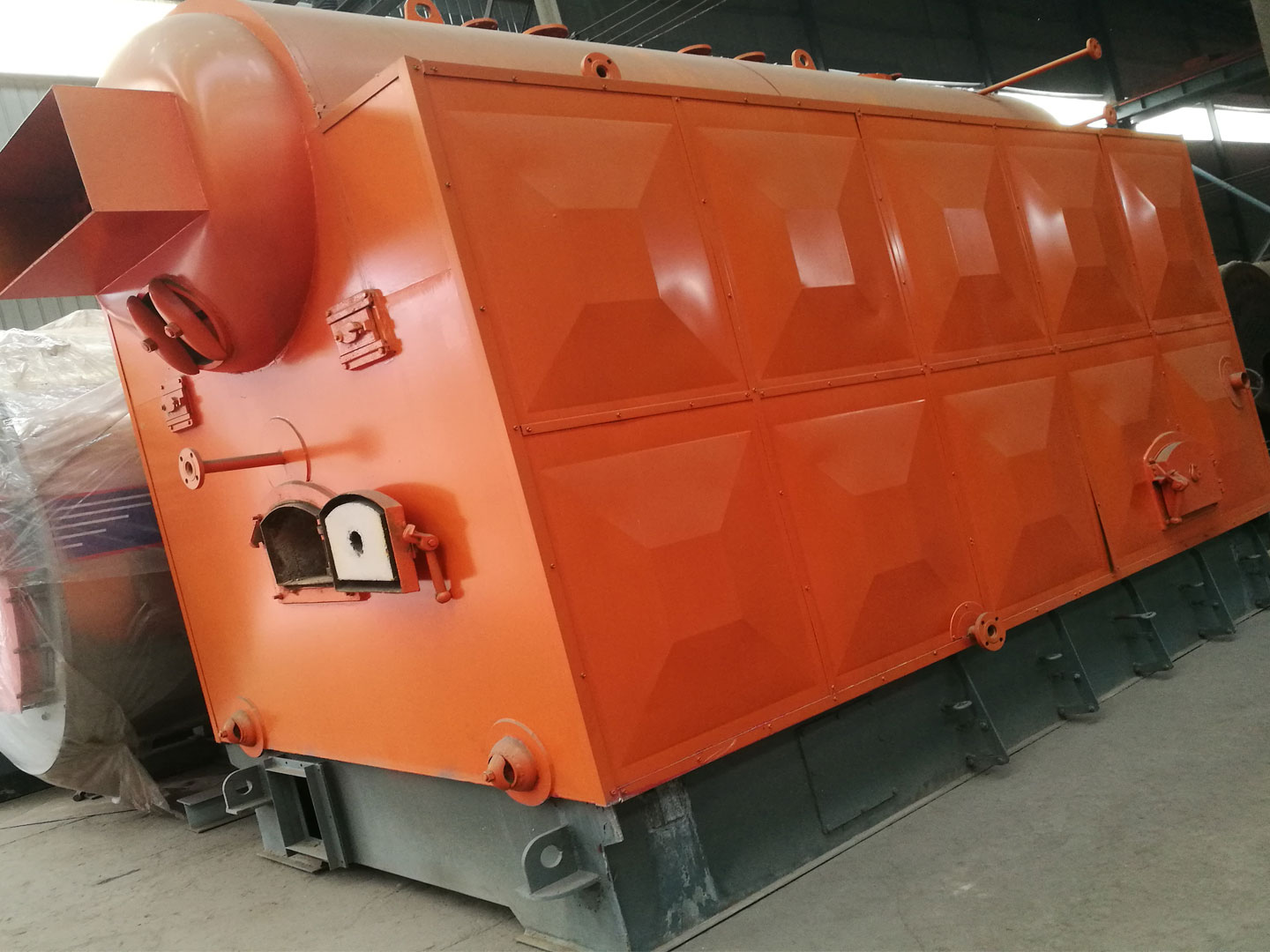

DZH coal fired moving grate boiler is single drum boiler with both water tube and fire tube, the combustion equipment is moving grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and spirally corrugated tubes in the drum are convection heating area. This coal fired moving grate boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The furnace structure is in reasonable arrangement to achieve high efficiency. This moving grate boiler adopts several environmental protect measures (bag dust collector, double towers desulfurization, etc.) to meet the national emission requirement.
Top Features of Taiguo DZH Steam Boiler:
1. Single cylinder, fire tube (Spirally corrugated tube) and water tube.
2. Packaged style
3. Fuel can be wood,firewood, logs,waste.etc.
4. Hand fired type.
5. Capacity 1Ton-6Ton/HR
6.Design pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar)
7.Stem temperature:184C,194C,204C
8.Equipped with full set auxiliaries, after simple installation, the boiler can operate.
Model
Item | DZH1-0.7- AII DZH1-1.0- AII DZH1-1.25- AII | DZH2-0.7- AII DZH2-1.0- AII DZH2-1.25- AII DZH2-1.6- AII | DZH4-1.25- AII DZH4-1.6- AII | |
Rated Steam Capacity(t/h) | 1 | 2 | 4 | |
Rated Steam Pressure(MPa) | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 1.25/1.6 | |
Rated Steam Temperature(℃) | 170/184/194 | 170/184/194/204 | 194/204 | |
Heating Area(M2) | Mainframe | 32.12/32.12/33.24 | 50.5/51.8/51.05/59.4 | 92.82/92.82 |
Economizer | 10.56/10.56/27.6 | 27.6 | 69.76/33.12 | |
Effective Grate Area(M2) | 2.1 | 3.36 | 5.2 | |
Fuel Consumption(kg/h) | ~150 | ~301 | ~602 | |
Exhaust Gas Temperature(℃) | ~165 | ~165 | ~165 | |
Thermal Efficiency(%) | 80 | 80 | 80 | |
Weight of Biggest Part for Transportation(t) | 12 | 15 | 22 | |
Overall Dimension of Boiler Assembled L*W*H(mm) | 4108×2200×2915 | 4700×2300×3270 | 5600×2550×3563 | |
