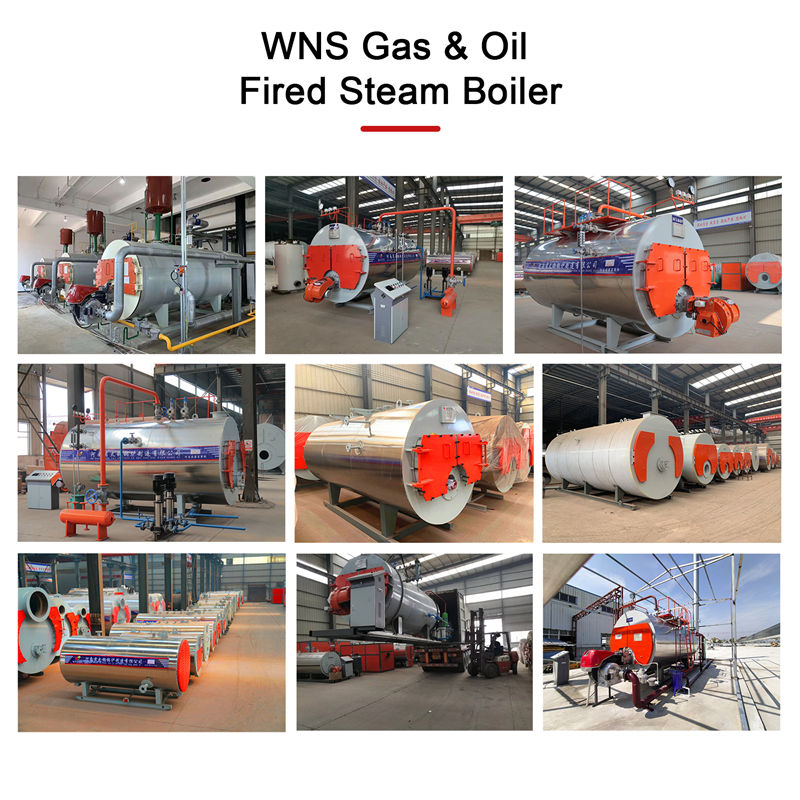

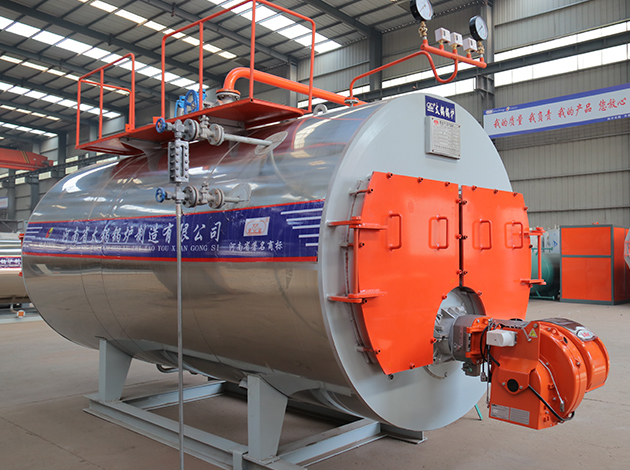

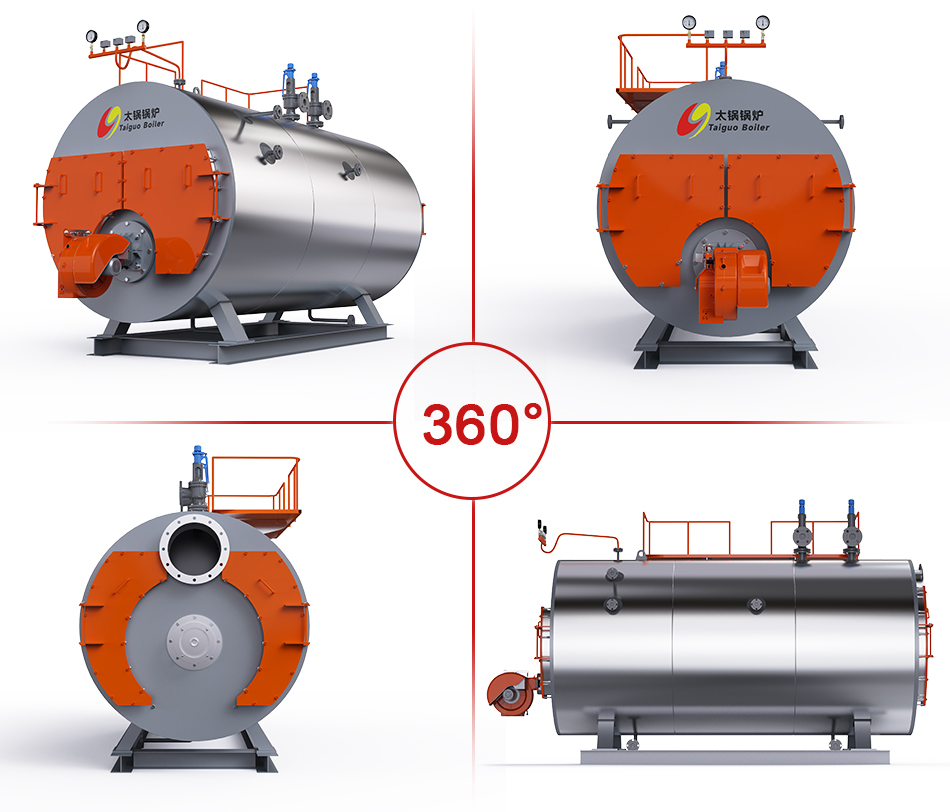

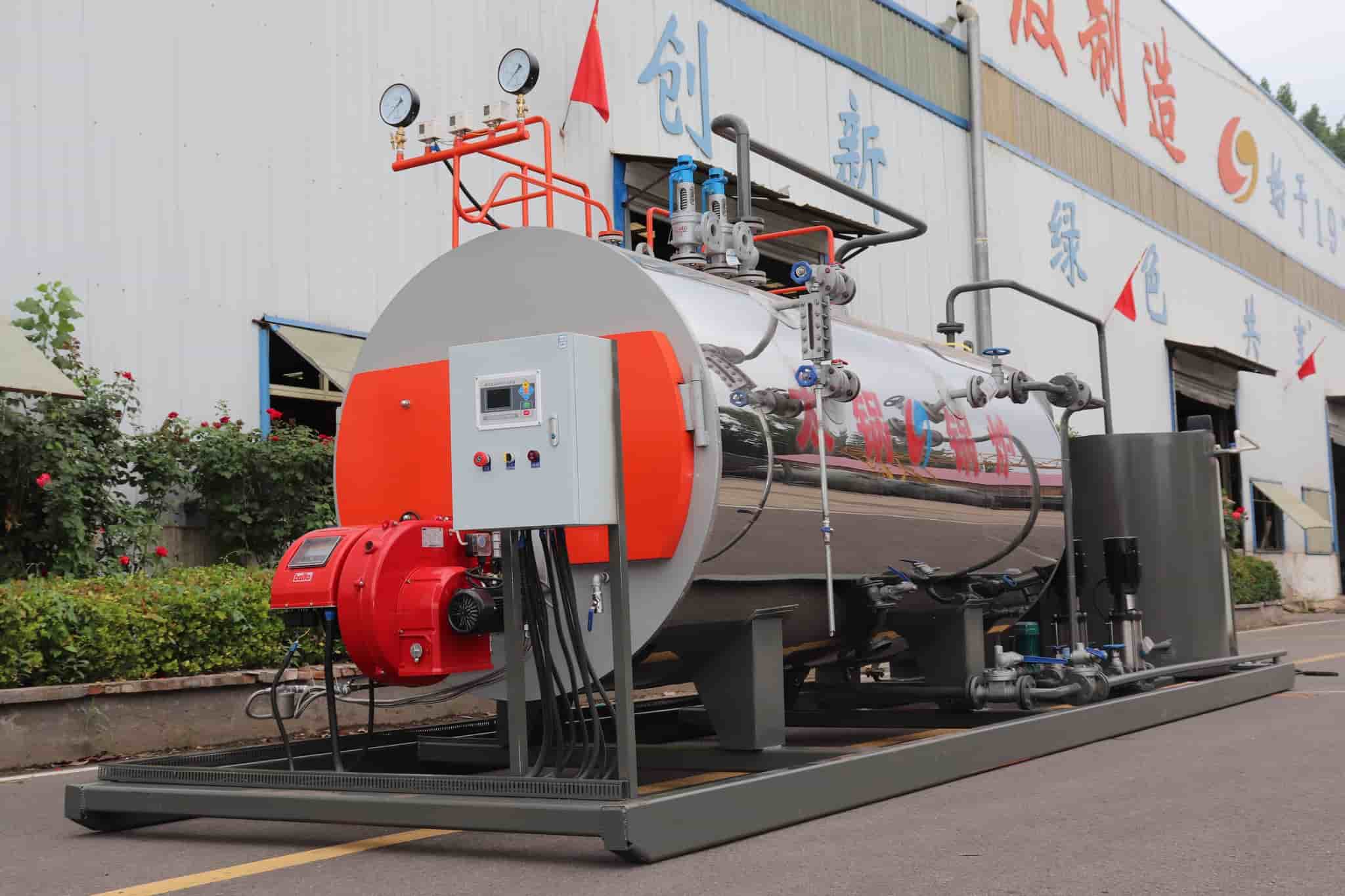

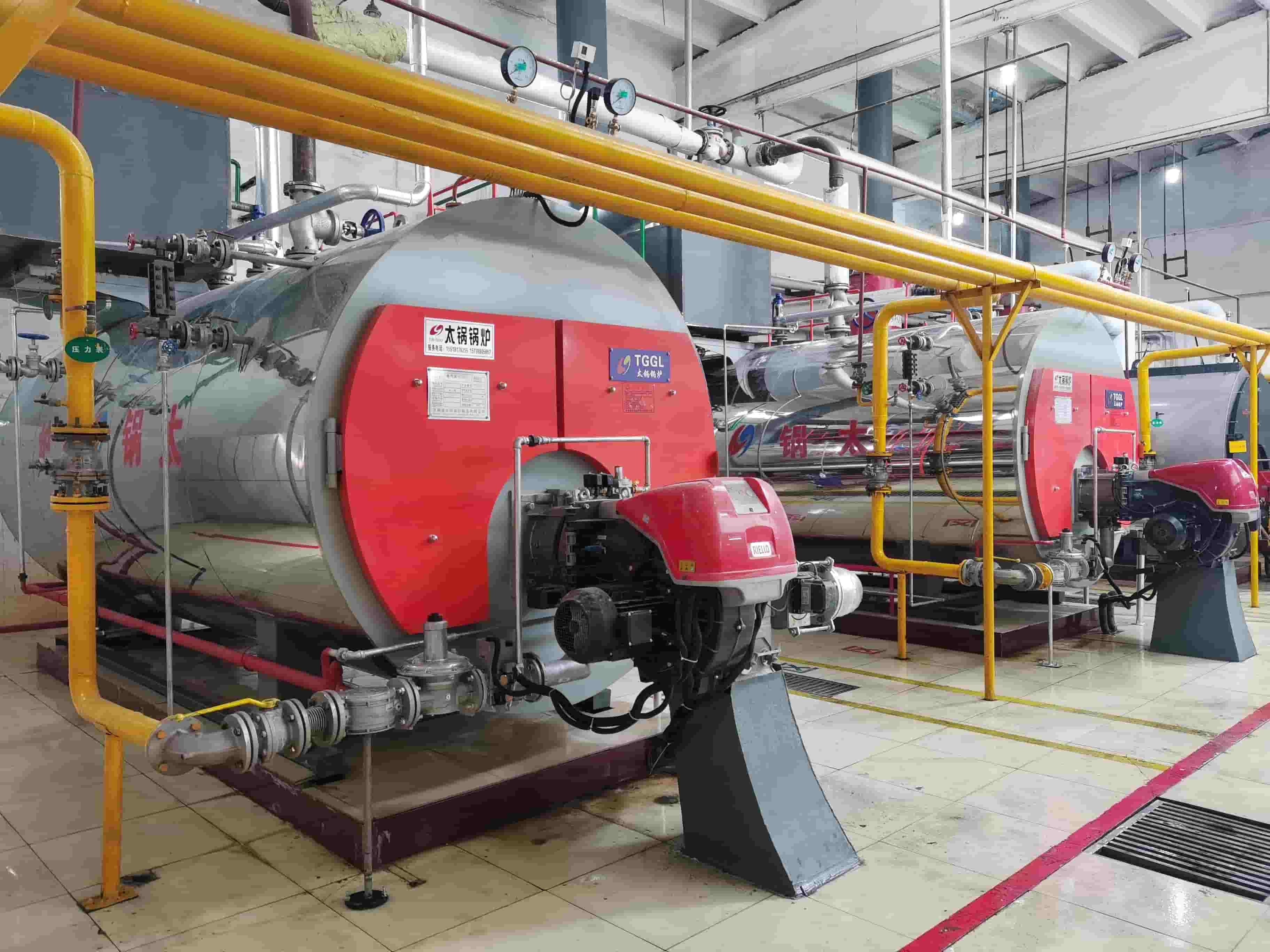

The WNS series gas and oil fired steam boiler is a horizontal three-pass, full wet-back fire tube boiler engineered for continuous, zero-downtime industrial production. Featuring a large-diameter corrugated furnace and a 100% water-surrounded wet-back design, it maximizes the heat transfer area to ensure exceptional thermal efficiency and structural integrity.
Equipped with premium international burners and smart PLC automation, the WNS series delivers smooth load adaptability and ultra-low NOx emissions. It is the ultimate low-maintenance, fuel-saving thermal solution for pharmaceuticals, food processing, textiles, and packaging industries worldwide.
Note: Customized energy-saving economizers and condensers can be integrated to boost thermal efficiency to over 98%.

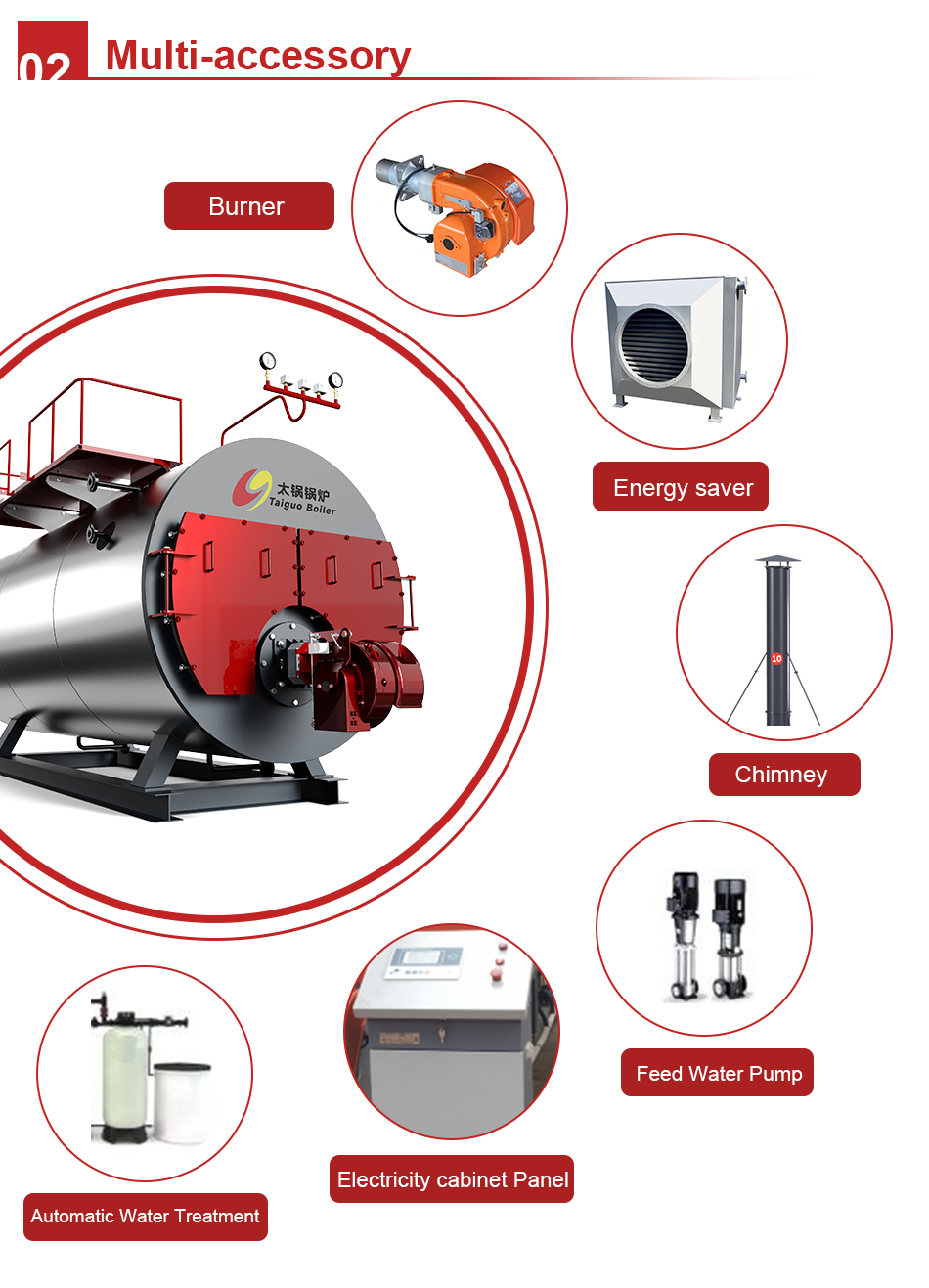

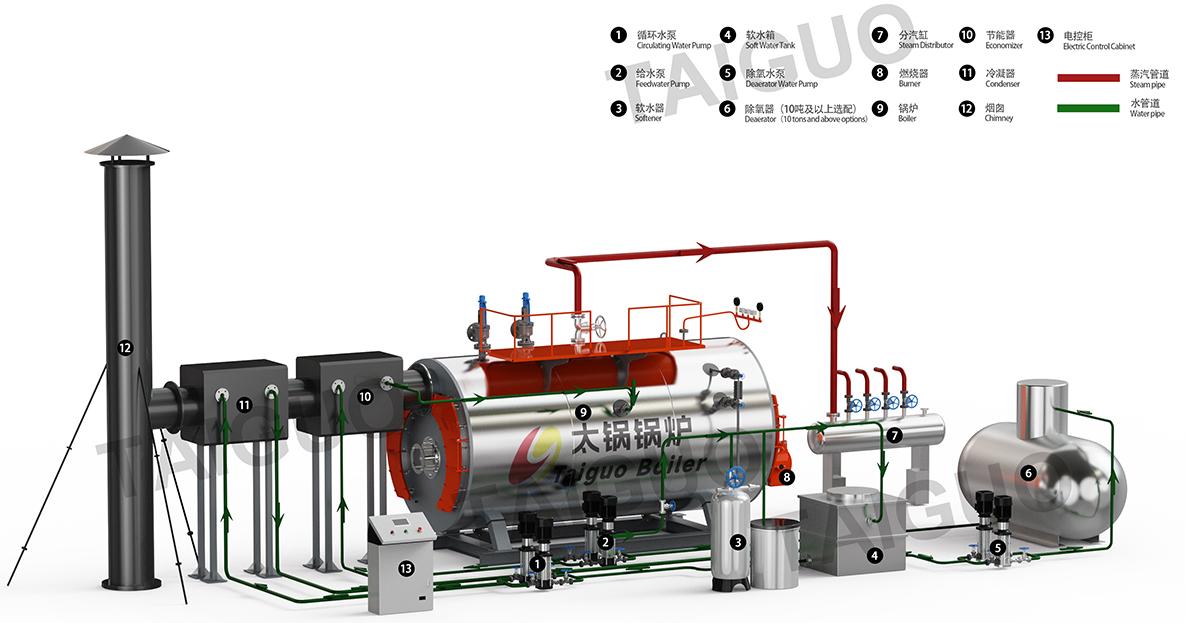

1. Burner – Italy Baltur or other brands as specified.
2. Control Cabinet – Full automatic PLC system with English display.
3. Water Pump – Brand optional; variable frequency supply for energy savings.
4. Economizer – Optional to improve thermal efficiency.
5. Water Treatment – Options based on water quality, such as softening or reverse osmosis.
Standard configuration shown above; other accessories like condensate recovery, deaerator, and pressure tank are also available. For details, please send an inquiry.
1. Maximum Thermal Efficiency (≥98%): Integrated energy-saving economizers and condensers reuse waste heat from flue gas, boosting total efficiency while reducing fuel costs.
2. Wet-Back Design & Compact Layout: The wet-back reversal chamber is fully immersed in water, avoiding rear tube plate damage from high-temperature smoke. The skid-mounted or quick-assembly designs ensure a compact footprint.
3. Corrugated Furnace & Safe Operation: Features a corrugated furnace and threaded fire tubes to flexibly handle thermal expansion and prevent fatigue cracks. Equipped with smart PLC automation for automatic ignition, water level adjustment, and remote monitoring (Internet of Things).
4. Clean and Environmentally Friendly: Features an advanced low-NOx burner to meet strict environmental regulations (NOx emission ≤30mg/Nm³).

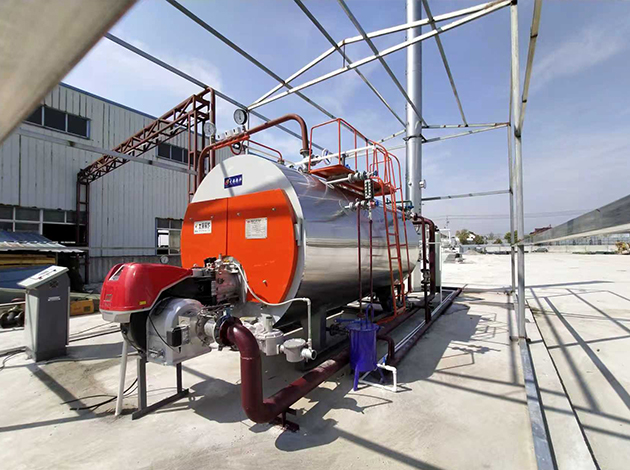

5. Quick and Effortless Installation: The optional skid-mounted base allows users to start the boiler immediately after simply connecting water, electricity, and fuel on-site.
6. Expert Burner & Water Treatment: Standard components include world-class burners (Italy Baltur or specified brands), full automatic PLC control cabinets, high-quality water pumps, optional economizers, and water treatment systems (softening or reverse osmosis).
Our high-performance **WNS series packaged steam boilers** provide continuous high-purity steam and flexible fuel adaptability for diverse manufacturing industries globally:
Medicine & Pharmaceutical Industry: For medicine sterilization, reactors, and high-purity steam for clean room environments.
Chemical & Packaging Industries: For chemical reaction columns, paper mills, and packaging processing lines.
Textile Mills & Garment Factories: Delivering stable high-temperature steam for fabric printing, finishing, and ironing lines.
Food Processing & Beverage: For food sterilization, automated parboiling lines, beverage boiling, and laundry facilities.
Commercial Central Heating: Providing central heating and hot water supplies for large hospitals, luxury hotels, and university campuses.

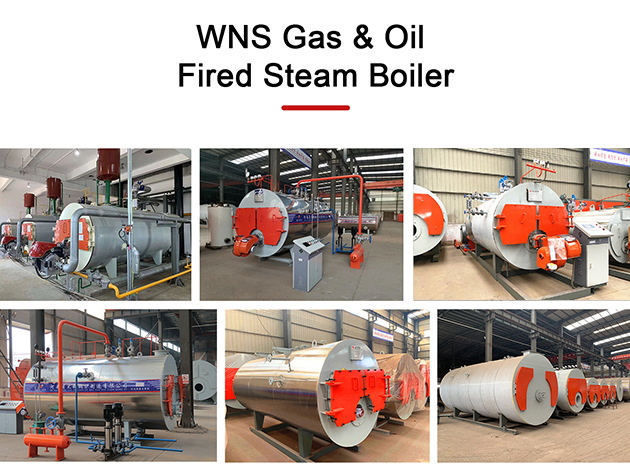

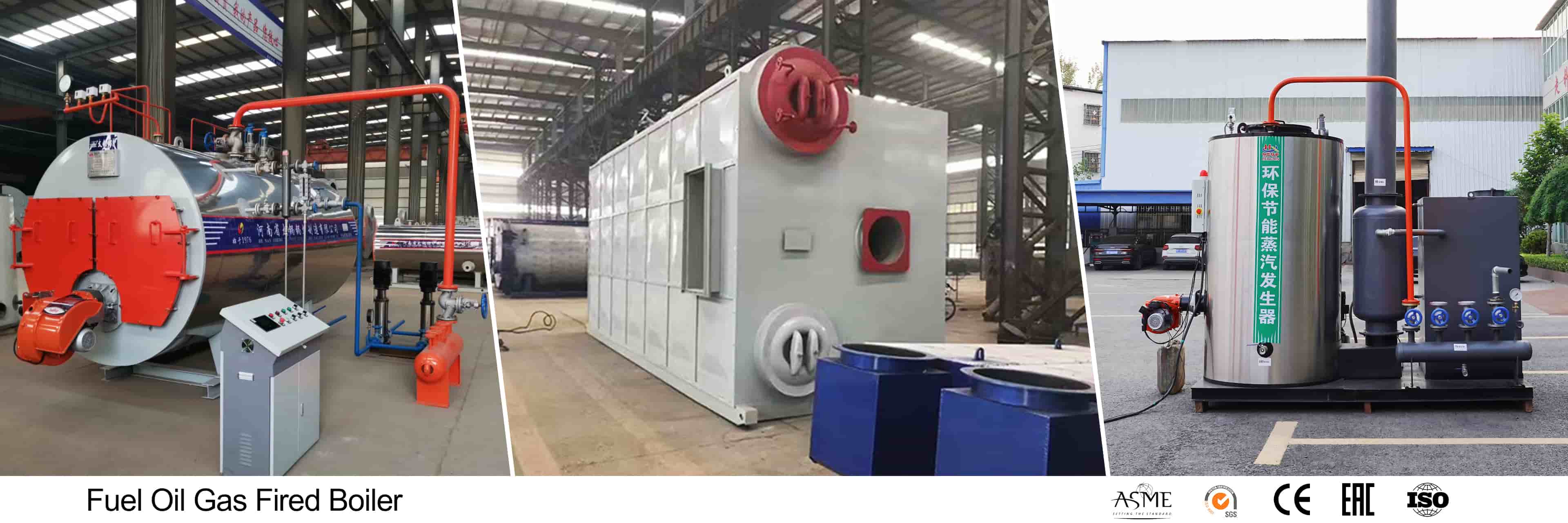

We offer various oil & gas fired boilers, including WNS fire tube steam boiler, SZS water tube boiler, and vertical steam generator to meet different needs.

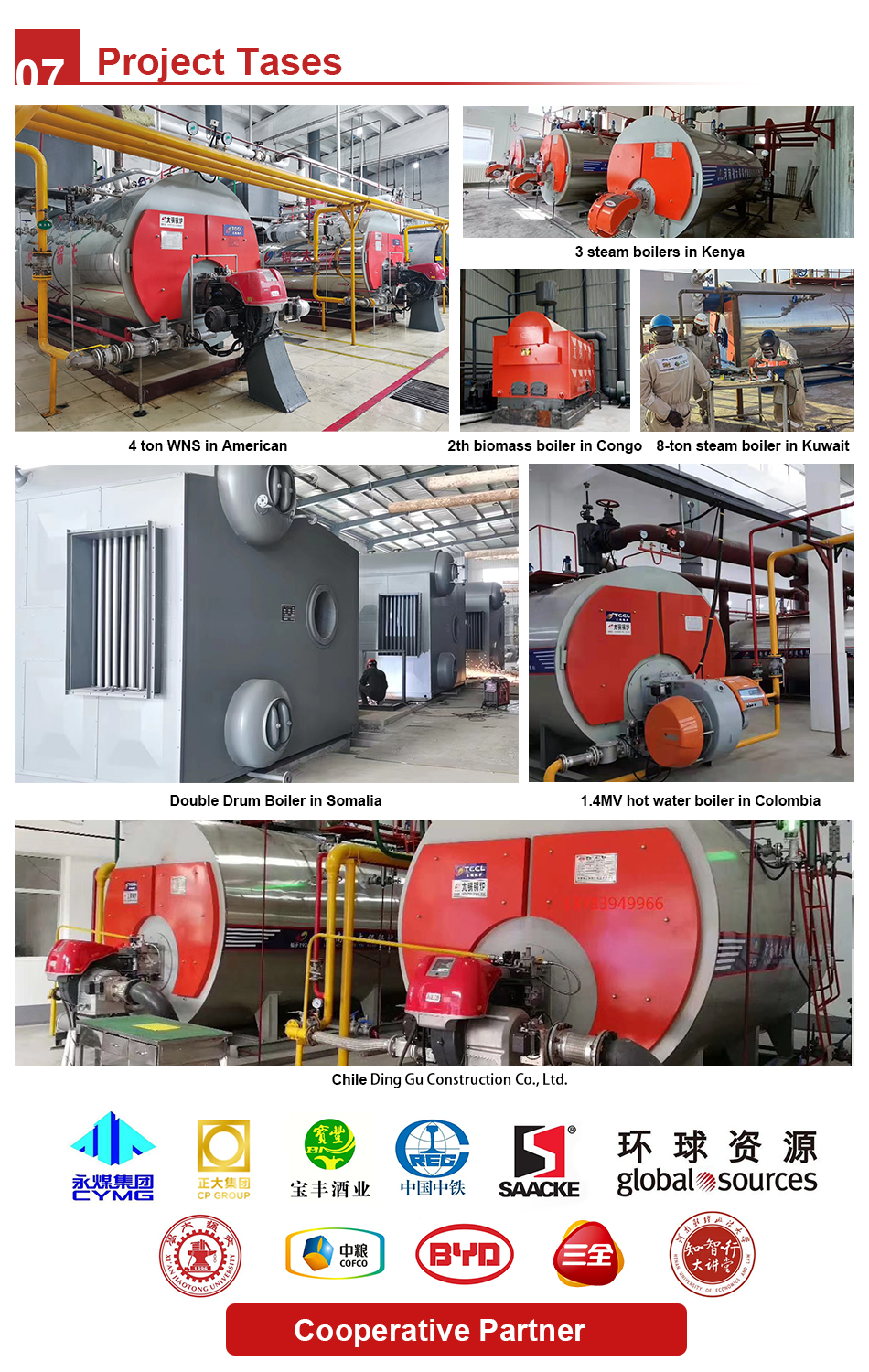

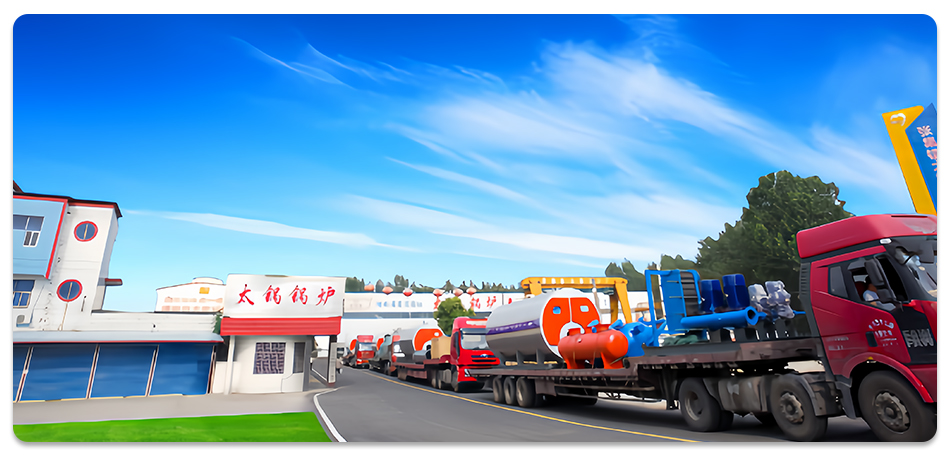

Our boilers are exported worldwide and trusted by customers in Asia, Europe, Africa, and South America. With rich export experience, we deliver efficient and customized solutions, earning a strong reputation for quality and service.
As a leading industrial boiler and pressure vessel manufacturer founded in 1976, Taiguo Boiler delivers world-class thermal solutions backed by five decades of engineering excellence:
National Designated A-Class Boiler Manufacturer: We hold the highest national manufacturing credentials, ensuring premium safety, reliable pressure part construction (D1/D2 certificates).
International Certificates & Export Experience: Our facilities integrate advanced QA protocols, 100% real-time X-ray non-destructive testing, certified under ISO9001, CE, ASME, EAC, and ISO to ensure seamless import compliance worldwide. We have exported high-quality boilers to over 100 countries supported by a responsive and professional overseas service team.
Turnkey Services & expert assistance: We provide full engineering support from customized layout drawings, expert boiler room planning, to overseas installation guidance and lifetime technical spare parts support.

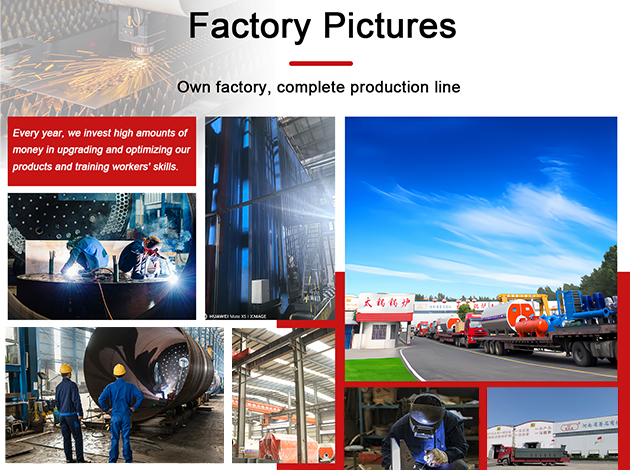

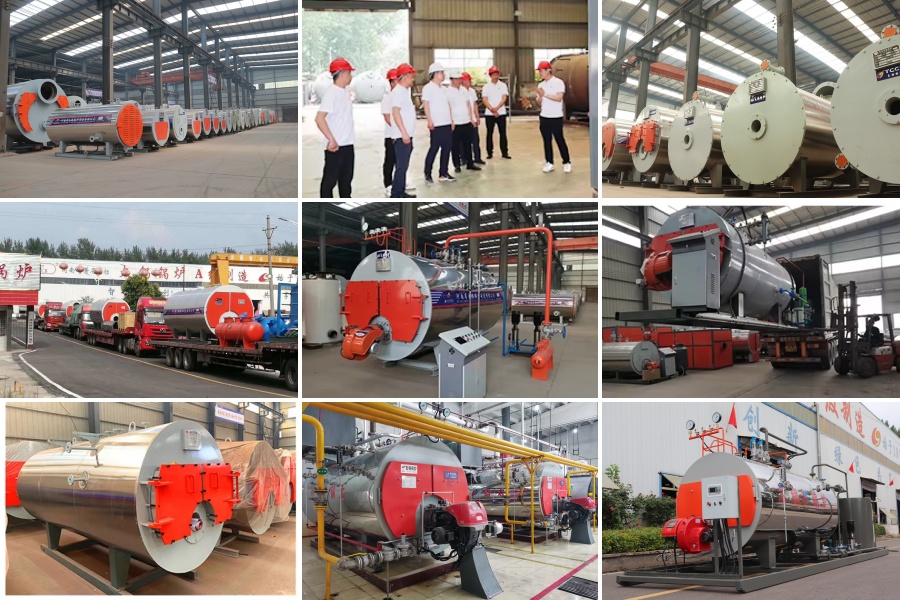

Welcome customers worldwide to visit our state-of-the-art 60,000 m² factory for inspections, technical exchanges, and commercial partnerships. With extensive experience in receiving international clients, we ensure every visit is professional, rewarding, and hassle-free.
| Model |
Rated evaporation capacity (t/h) |
Rated steam pressure (Mpa) |
Thermal efficiency (％) |
Fuel consumption |
Overall dimension (m) |
Weight (t) |
||
|
Diesel (Kg/h) |
Natural gas (Nm³/h) | |||||||
| WNS1-1.0/1.25/1.6-Y(Q) | 1 | 1.0/1.25/1.6 | 92 | 63.94 | 70.7 | 3.6×2.0×2.0 | 4 | |
| WNS2-1.25/1.6/2.0/2.5-Y(Q) | 2 | 1.25/1.6/2.0/2.5 | 92 | 127.88 | 141.4 | 4.8×2.1×2.3 | 8 | |
| WNS3-1.25/1.6/2.0/2.5-Y(Q) | 3 | 1.25/1.6/2.0/2.5 | 94 | 187.73 | 212 | 5.1×2.1×2.3 | 10 | |
| WNS4-1.25/1.6/2.0/2.5-Y(Q) | 4 | 1.25/1.6/2.0/2.5 | 94 | 250.31 | 282.8 | 5.2×2.1×2.3 | 11.6 | |
| WNS5-1.25/1.6/2.0/2.5-Y(Q) | 5 | 1.25/1.6/2.0/2.5 | 95 | 309.60 | 353.5 |
5.323.1×3.0 | 13 | |
| WNS6-1.25/1.6/2.0/2.5-Y(Q) | 6 | 1.25/1.6/2.0/2.5 | 95 | 371.52 | 424.2 | 5.4×3.1×3.15 | 16.6 | |
| WNS7-1.25/1.6/2.0/2.5-Y(Q) | 7 | 1.25/1.6/2.0/2.5 | 95 | 433.44 | 496 | 6.1×2.4×2.98 | 20 | |
| WNS8-1.25/1.6/2.0/2.5-Y(Q) | 8 | 1.25/1.6/2.0/2.5 | 95 | 495.35 | 565.6 | 6.35×2.5×2.98 | 21.3 | |
| WNS10-1.25/1.6/2.0/2.5-Y(Q) | 10 | 1.25/1.6/2.0/2.5 | 96 | 612.75 | 707 | 6.75×2.6×3.2 | 25.6 | |
| WNS12-1.25/1.6/2.0/2.5-Y(Q) | 12 | 1.25/1.6/2.0/2.5 | 96 | 735.3 | 848.4 | 7.2×3×3.3 | 35 | |
| WNS15-1.25/1.6/2.0/2.5-Y(Q) | 15 | 1.25/1.6/2.0/2.5 | 96 | 919.1 | 1060.5 | 7.42×3.35×3.5 | 40 | |
| WNS20-1.25/1.6/2.0/2.5-Y(Q) | 20 | 1.25/1.6/2.0/2.5 | 96 | 1225.50 | 1414 | 7.97×3.73×3.96 | 50 | |
| Note: 1.diesel heat value calculated by 10200kcal/kg, natural gas heat value calaculated by 8500kcal/Nm3,above parameter is for reference only. 2.above fuel consumption is maximum value according to boiler running at full load, and the condensing water at 90'C. | ||||||||
