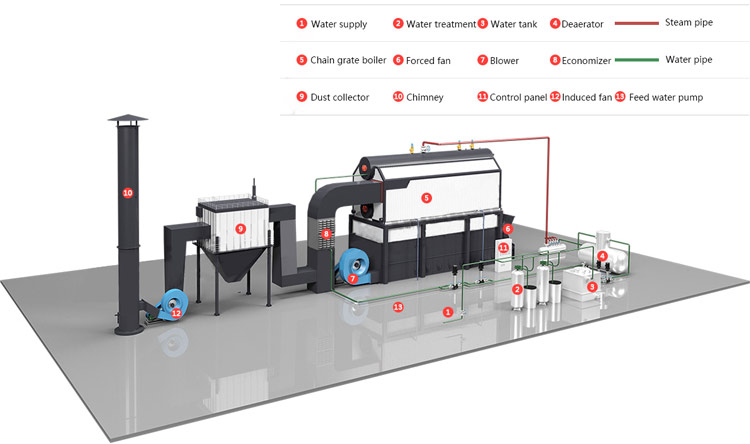

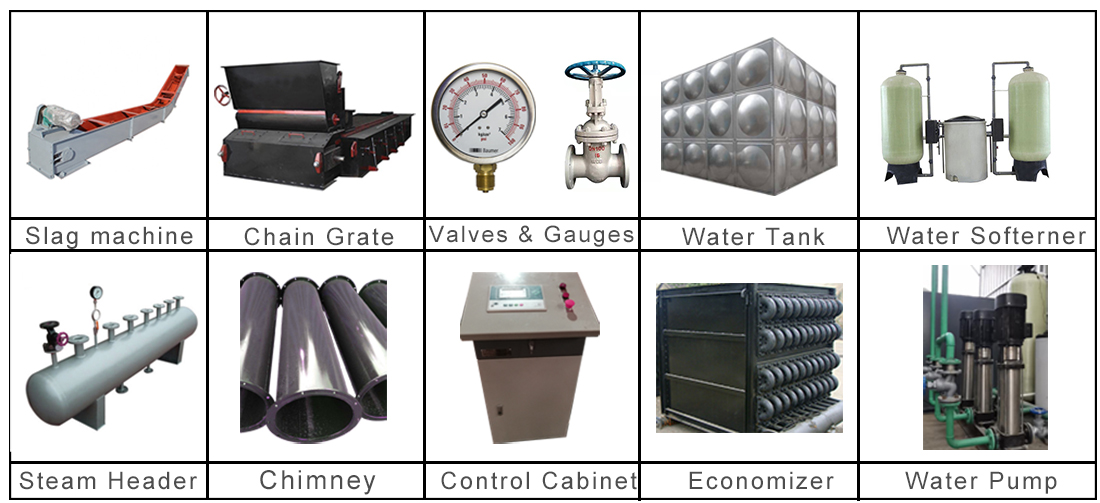

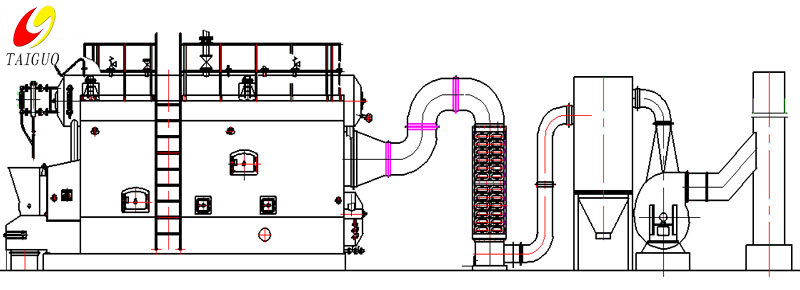

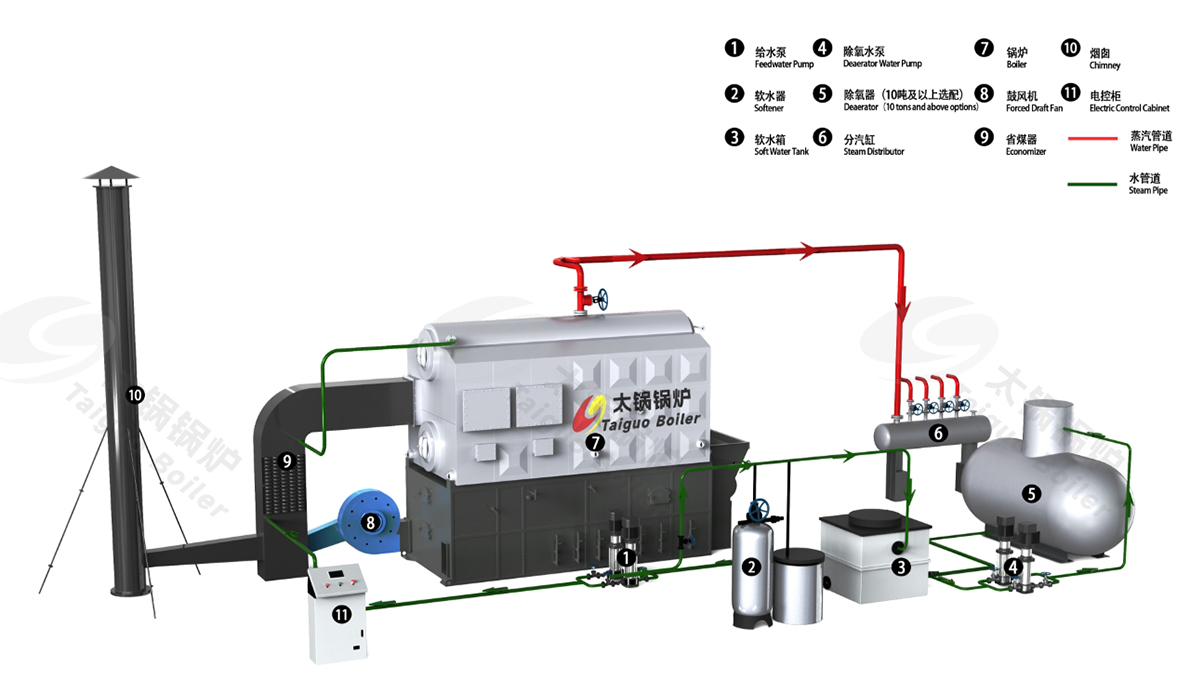

Whole SZL series biomass boiler system includes grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.

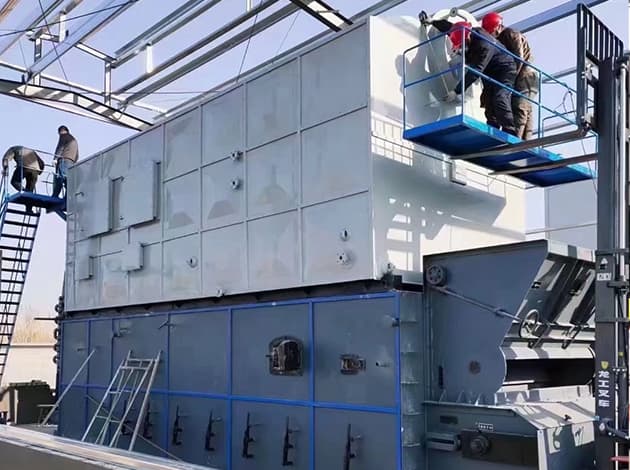

SZL Series Biomass Fired Steam Boiler:
Model |
Rated Steam Capacity (t/h) |
Working Pressure (MPa) |
Thermal Efficiency (%) |
Overall Dimension L×W×H (m) |
Weight (t) |
SZL2-1.25/1.6/2.5 |
2 |
1.25/1.6/2.5 |
81 |
5.8×2.35×3.5 |
25 |
SZL4-1.25/1.6/2.5 |
4 |
1.25/1.6/2.5 |
81 |
7.8×2.4×3.6 |
32 |
SZL6-1.25/1.6/2.5 |
6 |
1.25/1.6/2.5 |
81 |
8×3×4.87 |
43 |
SZL8-1.25/1.6/2.5 |
8 |
1.25/1.6/2.5 |
81 |
8.1×3.2×5.7 |
63 |
SZL10-1.25/1.6/2.5 |
10 |
1.25/1.6/2.5 |
81 |
8.2×3.5×5.7 |
87 |
SZL12-1.25/1.6/2.5 |
12 |
1.25/1.6/2.5 |
81 |
10.6×3.6×5.7 |
100 |
SZL15-1.25/1.6/2.5 |
15 |
1.25/1.6/2.5 |
82 |
12.5×3.7×5.8 |
105 |
SZL20-1.25/1.6/2.5 |
20 |
1.25/1.6/2.5 |
82 |
13.8×4.2×5.8 |
140 |
SZL25-1.25/1.6/2.5 |
25 |
1.25/1.6/2.5 |
82 |
15.6×5×6.135 |
170 |
SZL30-1.25/1.6/2.5 |
30 |
1.25/1.6/2.5 |
82 |
17.7×8.5×9.5 |
210 |
Note:1.Parameter is for reference only, if any changes should follow the factory technical data. | |||||
SZL Series Biomass Fired Hot Water boiler:
Model |
Rated Power (MW) |
Working pressure (Mpa) |
Supply water temperature (℃) |
Return water temperature (℃） |
Thermal efficiency (%） |
SZL1.4-0.7/95/70 |
1.4 |
0.7 |
95 |
70 |
80 |
SZL2.8-0.7/95/70 |
2.8 |
0.7 |
95 |
70 |
80 |
SZL4.2-1.0/95/70 |
4.2 |
1 |
95 |
70 |
80 |
SZL5.6-1.0/95/70 |
5.6 |
1 |
95 |
70 |
80 |
SZL7-1.0/95/70 |
7 |
1 |
95 |
70 |
80 |
SZL10.5-1.0/115/70 |
10.5 |
1 |
115 |
70 |
80 |
SZL14-1.0/115/70 |
14 |
1 |
115 |
70 |
80 |
Note: 1.Parameter is for reference only, if any changes should follow the factory technical data. | |||||
