Electric Steam Generator
Introduction
Electric steam generator is small capacity steam output electric power steam generator, design natural circulation model, there are water tubes inside, has high efficiency reach to 98%.

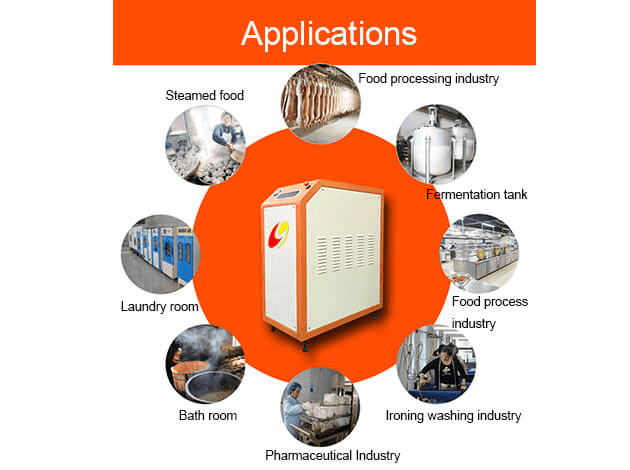

Electric Steam generator Applications:
1. Ironing washing industry---Dry cleaning machine, dryer, washing machine, dehydrator, ironing machine, iron, etc.
2. Electroplating cleaning industry---Bath of plating bath, acid bath, cleaning pool heating constant temperature;
3. Food processing industry---Tofu machine, rice noodle machine, steam box, sterilization tank, chartered plane;
4. Hotels, enterprises and institutions canteen and various service stations disinfection, steamed rice and water supply;
5. Biological chemical---Fermentation tank, reaction kettle, interlayer pot, mixer, emulsifying machine, etc;
6. Packaging machinery---The label machine set standard machine supporting use;
7. Other industries---steam cleaning industry, steam heating or hot water supply, etc.
Quick Details

Features:

1.The tank has a large steam storage space, and the steam is pure without moisture.

2. Temperature and pressure can be adjusted, power can be adjusted in four steps

3. Mechanical float control water level, pure water can be used

4. Small size, light weight, complete machine, easy to install

5. Dual safety guarantee for adjustable pressure controller and safety valve

6. Hydropower independent box, convenient for maintenance and maintenance, safe and reliable

7. Double set of high quality seamless stainless steel heating tubes, adjustable power

8. Electric heating, no open flame, no safety hazard, with brakes Vientiane casters

9.Small size, light weight, complete machine, easy to install


Technical Parameters of electric steam generator:


Power

Rated Evaporation

Max Pressure

Max Temperature

Voltage

Rated Current

Water Tank

Water Pump Power (W)

Size (MM)

3KW

4kg/h

0.7Mpa

151

380V

6A

25L

550

600*400*820

6KW

8kg/h

0.7Mpa

151

380V

10A

25L

550

600*400*820

9KW

12kg/h

0.7Mpa

151

380V

16A

25L

550

600*400*820

12KW

16kg/h

0.7Mpa

171

380V

20A

25L

550

660*410*900

18KW

24kg/h

0.7Mpa

171

380V

30A

25L

550

660*410*900

24KW

32kg/h

0.7Mpa

171

380V

40A

29L

550

710*430*1000

36KW

50kg/h

0.7Mpa

171

380V

60A

29L

550

710*430*1000

48KW(24*2)

65kg/h

0.7Mpa

171

380V

80A

29L

550

710*430*1000

48KW(12*4)

65kg/h

0.7Mpa

171

380V

80A

29L

550

760*460*1100

72KW

100kg/h

0.7Mpa

171

380V

120A

29L

550

760*460*1100

96KW

132kg/h

0.7Mpa

171

380V

180A

29L

Case
1t/h Electric hot water boiler used for heating
1t/h Electric hot water boiler used for heating
Modelelectric hot water boiler
Application1t/h
Capacityheating
2T/H Electric steam boiler shipped to Saudi Arabia
2T/H Electric steam boiler shipped to Saudi Arabia
Modelelectric steam boiler
Application2t/h
CapacityTextile Industry
3t/h Electric hot water boiler for heating milk
3t/h Electric hot water boiler for heating milk
Modelelectric hot water boiler
Application3t/h
Capacityheating milk
