Introduction

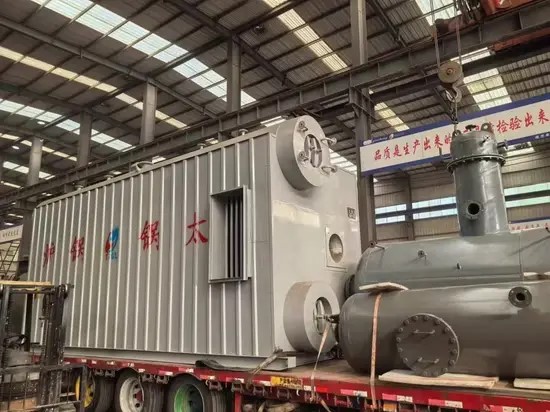

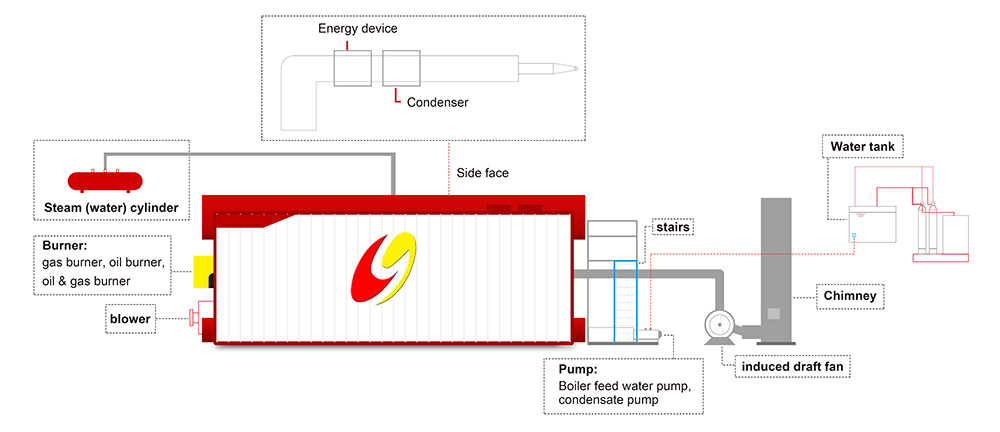

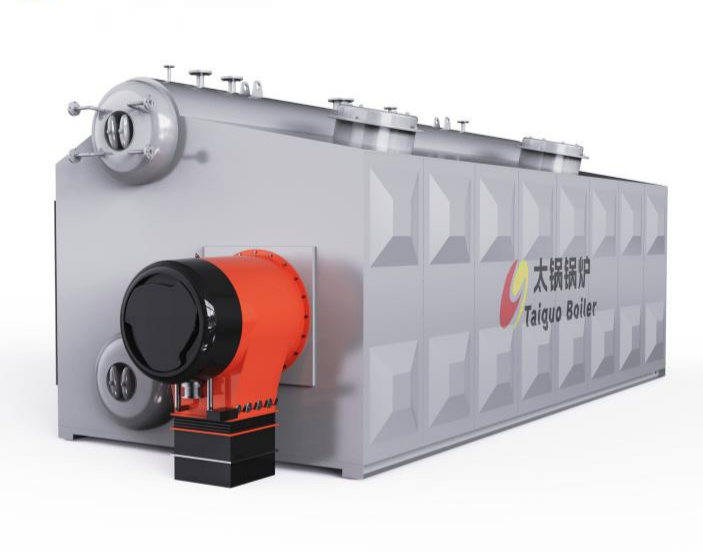

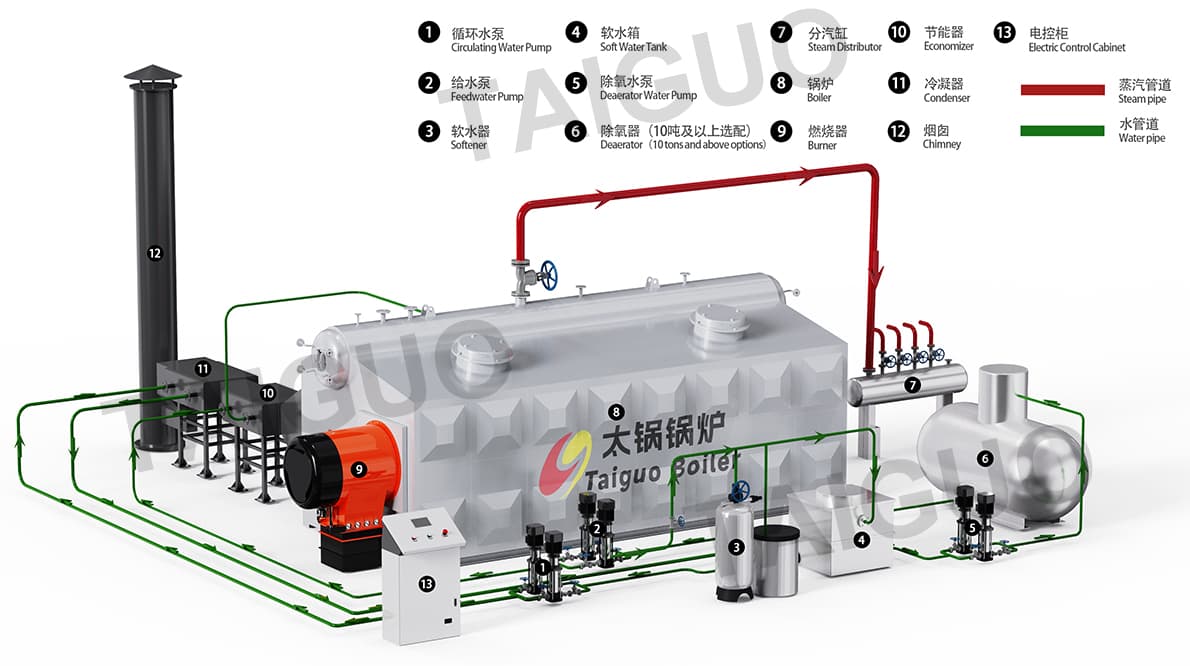

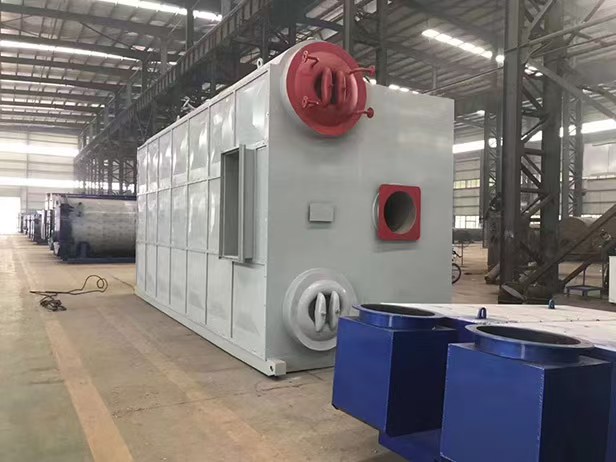

The SZS steam (hot water) boiler is a typical D-type quick-installed water tube boiler with a compact layout, reducing boiler house investment and shortening installation time. It consists of upper and lower drums, membrane water walls, convection tube bundle, economizer, and condenser, with a front-mounted burner and flue gas discharged through the tubes, economizer, condenser, and chimney. Two-stage energy-saving devices further lower exhaust temperature and improve efficiency up to 104% with natural gas.
Features
1. D-type double-drum design with compact structure and high safety
2. Membrane wall construction ensures minimal heat loss and long durability
3. High-efficiency burner for low fuel consumption and low emissions
4. Modular design for convenient installation and maintenance, low boiler room investment
5. Intelligent automatic control with multi-level protection system

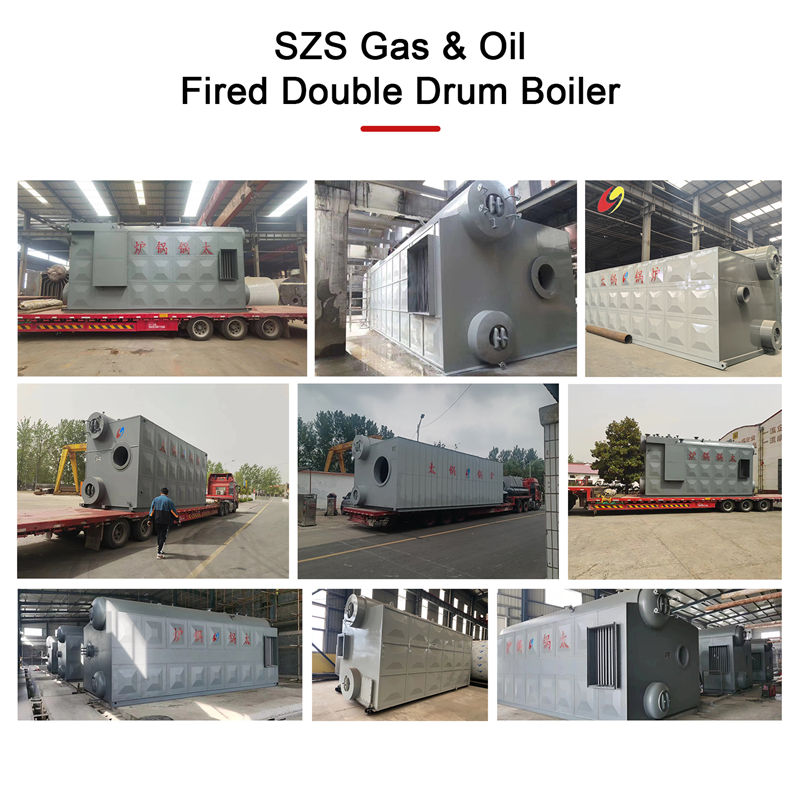

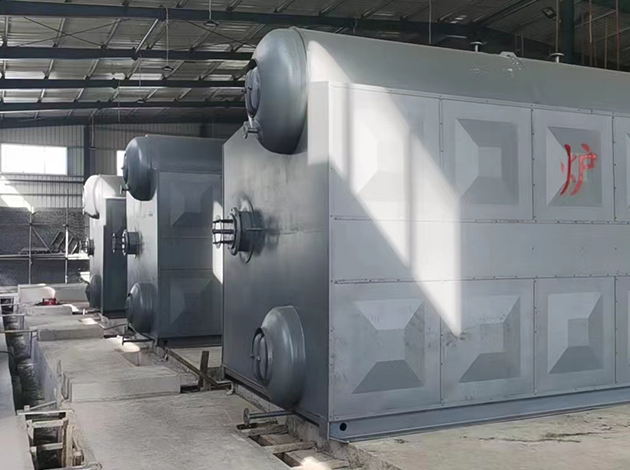

Project Cases
Our boilers are exported worldwide and trusted by customers in Asia, Europe, Africa, and South America. With rich export experience, we deliver efficient and customized solutions, earning a strong reputation for quality and service.
Why Choose Us?
Founded in 1976, Taiguo Boiler is National Designated A-Class Boiler Manufacturer to produce Class A boilers and D1/D2 pressure vessels, offering customized solutions from design to installation and commissioning, including boiler room planning.
Customer Visit
| Model | Rated Evaporation (t/h) |
Working Pressure (Mpa) |
Fuel Consumption | Overall Dimension (mm) |
Maximum Weight for Transportation (t) |
|
| Light Oil (kg/h) | Natural Gas (Nm3/h) | |||||
| SZS10-1.25-Y(Q) | 10 | 1.25 | 646 | 806 | 7.2×3.4×3.3 | 36.7 |
| SZS15-1.0-Y(Q) | 15 | 1 | 1043 | 1209 | 7.1×3.7×3.5 | 38 |
| SZS20-1.25-Y(Q) | 20 | 1.25 | 1165 | 1403 | 10.8×7×4.8 | 41 |
| SZS25-2.45-Y(Q) | 25 | 2.45 | 1458 | 1773 | 10.8×7×4.8 | 60 |
| SZS30-1.25-Y(Q) | 30 | 1.25 | 1718 | 2092 | 12.9×7×4.8 | 64 |
| SZS35-2.45-Y(Q) | 35 | 2.45 | 2048 | 2468 | 12.9×7×4.8 | 68 |
| SZS50-2.45-Y(Q) | 50 | 2.45 | 3218 | 3878 | 13.2×12×4.7 | - |
